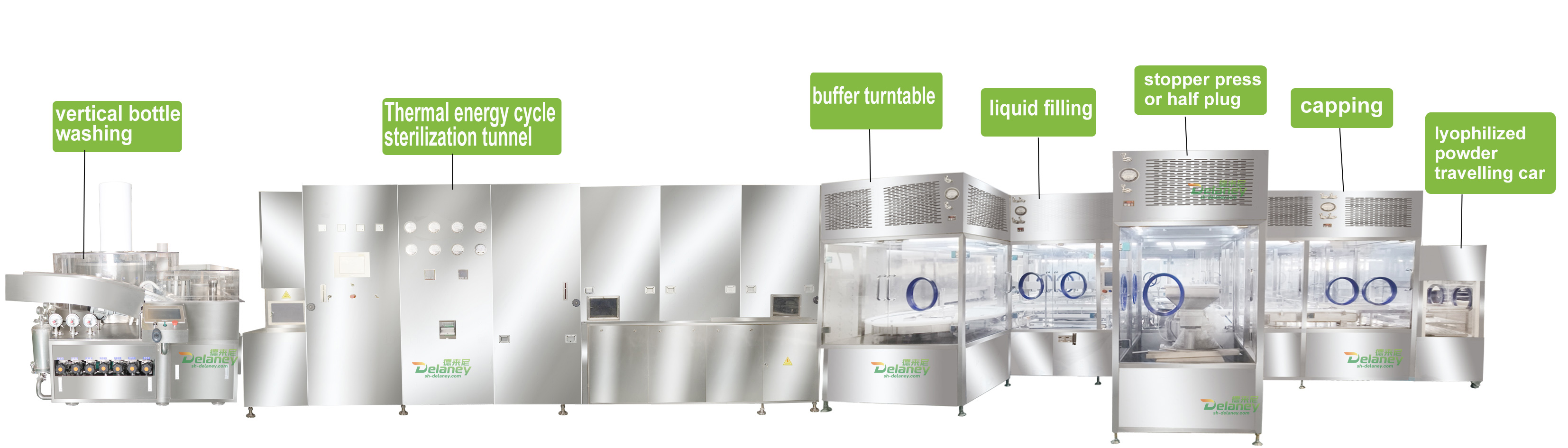

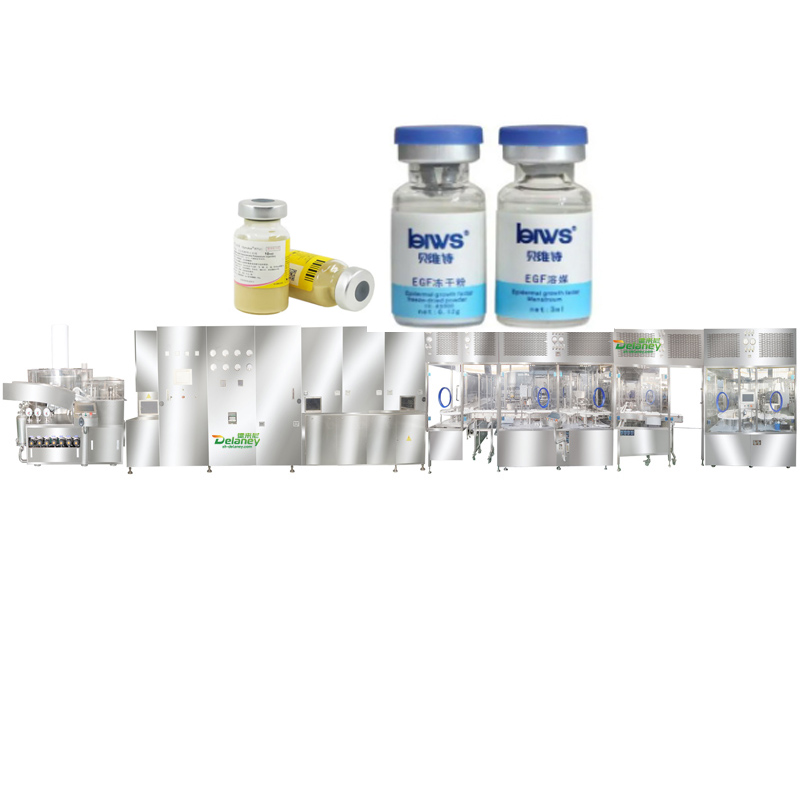

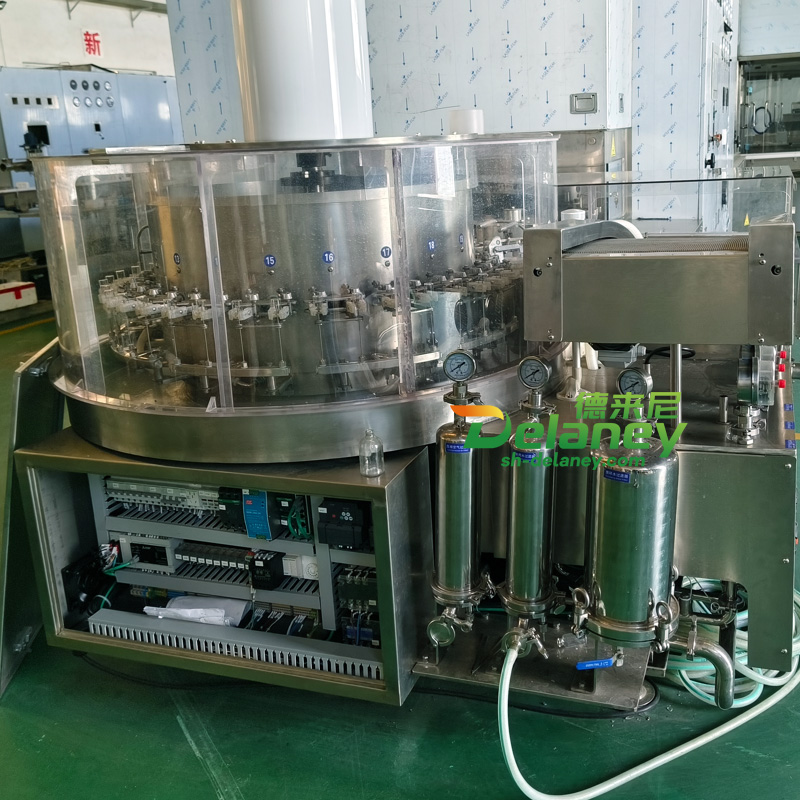

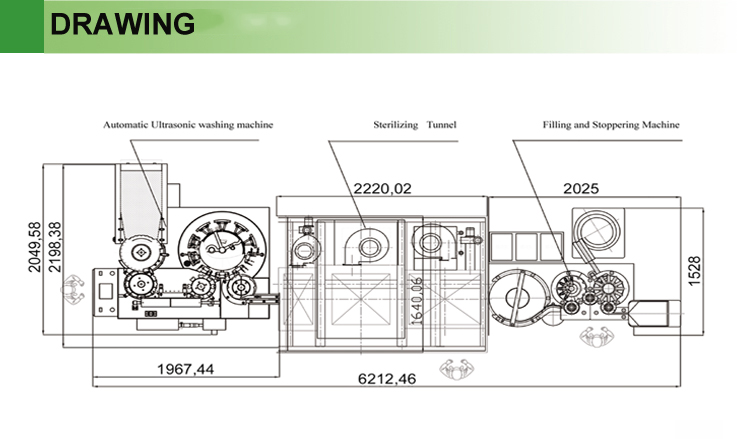

The machine's key parts purchased from well-known manufactures adopt latest control system. Stable running of the line, easier operation, low noise, and no pollution to the production environment. The entire line is in compliance with GMP guidelines. RABS could be provided optionally. The line is applicable to 2ml-100ml vials and the speed is max. 6,000 vials/hour.

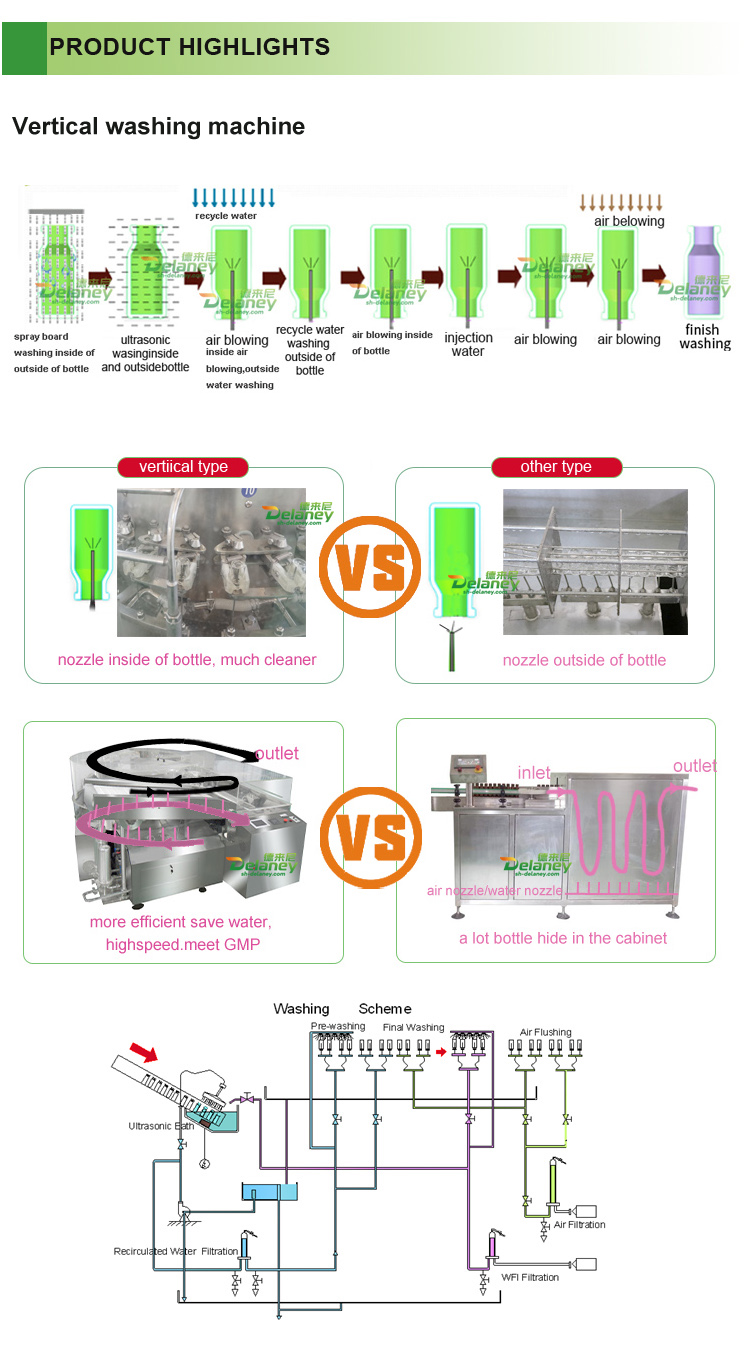

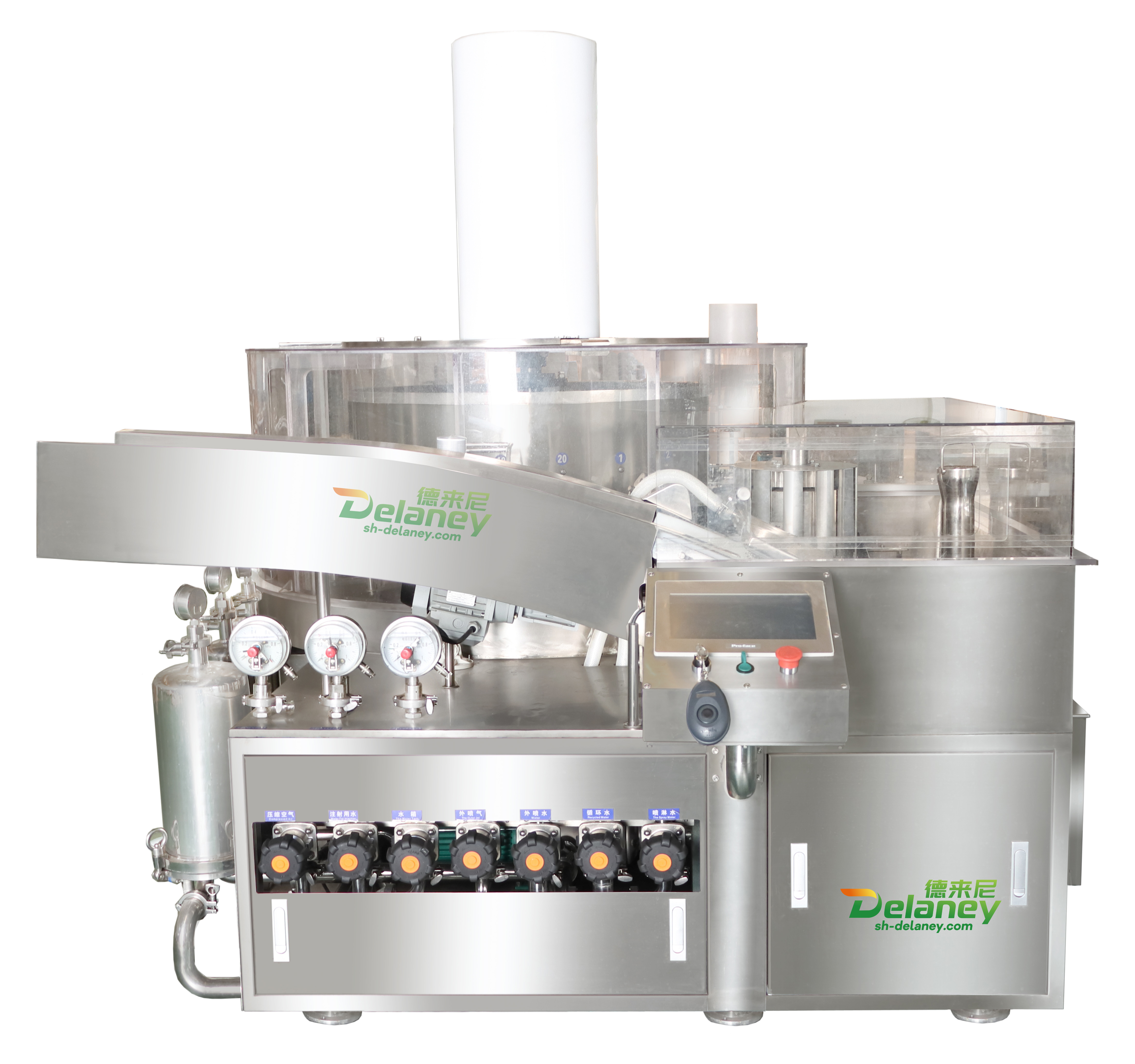

The washing machine consists of an infeeding section, ultrasonic treatment section, and final washing section. Containers advance through these processing sections via prewashing and final washing steps, ensuring verified and validated washing quality.
| Breakage | ≤0.01% |
| WFI Pressure | ≥0.3Mpa |
| WFI Temperature | 40-60℃ |
| WFI Consumption | 0.3m³/hr |
| RW Pressure | ≥0.3Mpa |
| Power | 3P 380V |
| Machine Dimension | 1300 × 1528 × 1400mm |
| Infeeding Height | 1000mm |
| Machine Weight | Approx. 1600kg |

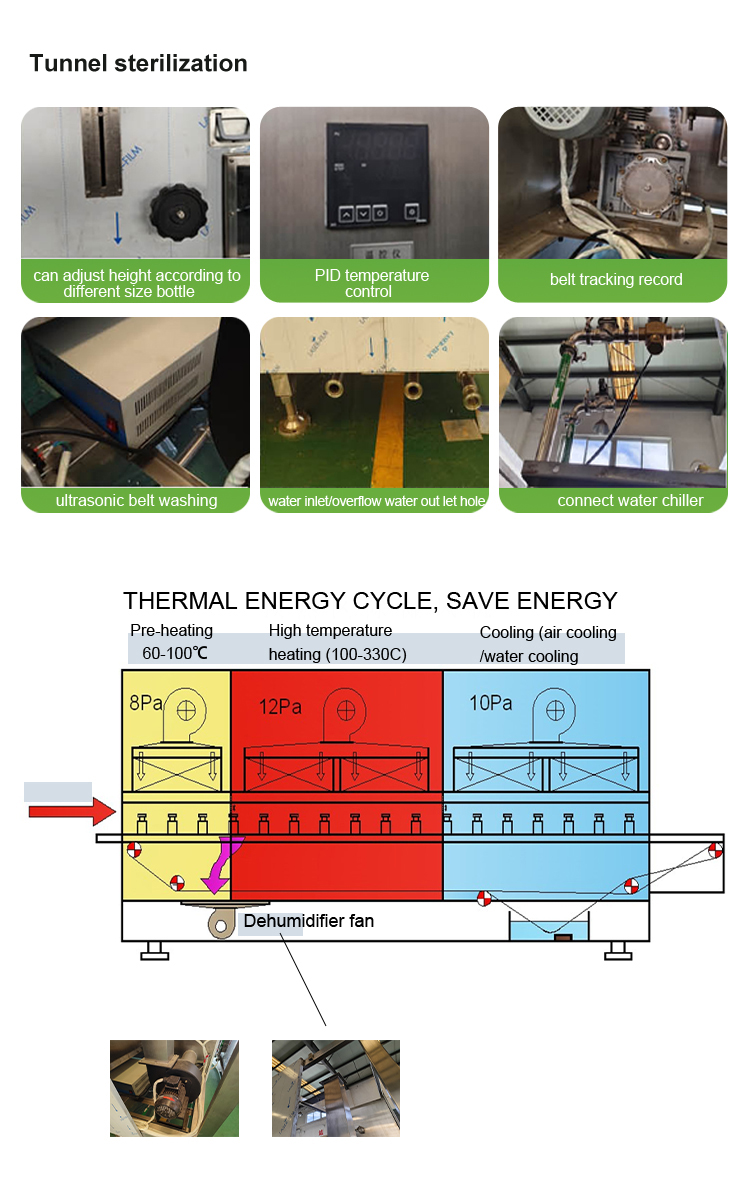

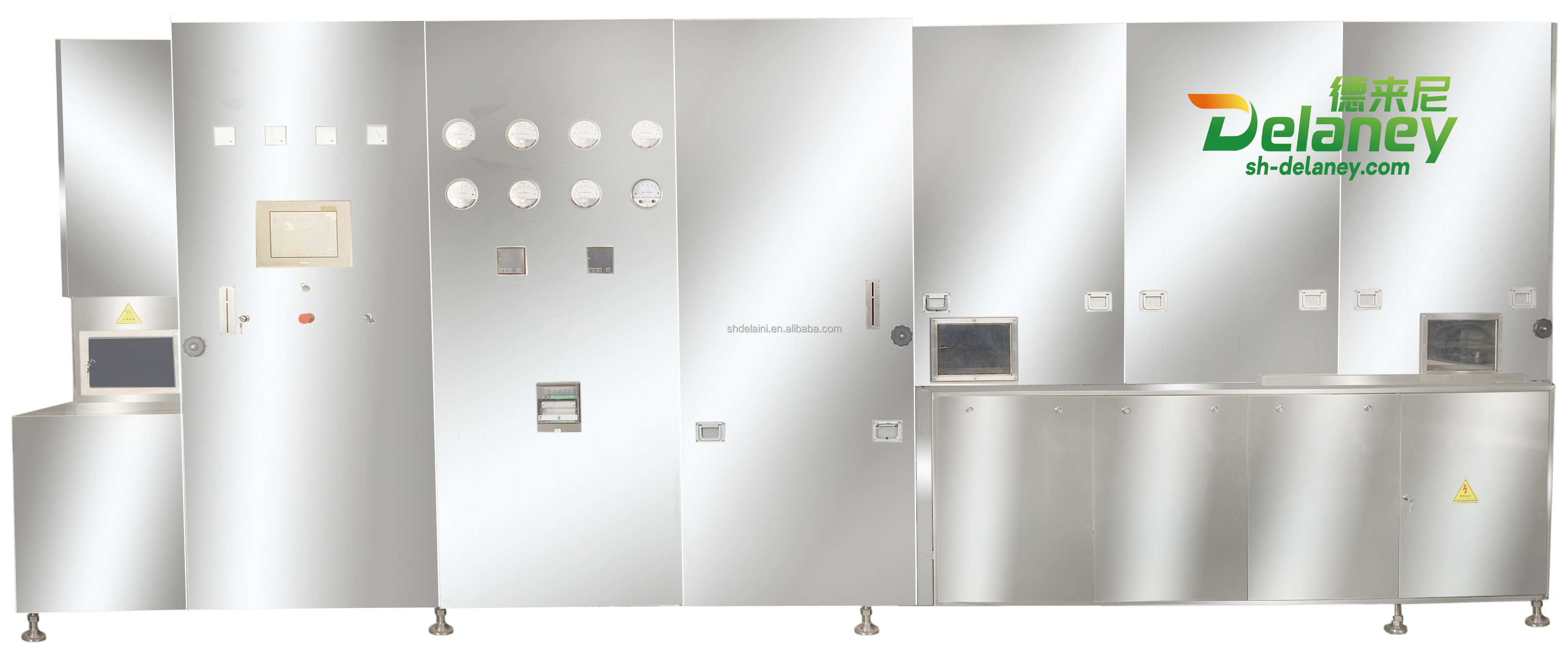

This equipment is applied for drying, sterilizing, and depyrogenation of washed vials, ampoules, and other containers. The tunnel is divided into three processing zones: preheating zone, heating zone, and cooling zone. According to requirements, air cooling and water cooling are optional. All fabric materials comply with GMP guidelines.

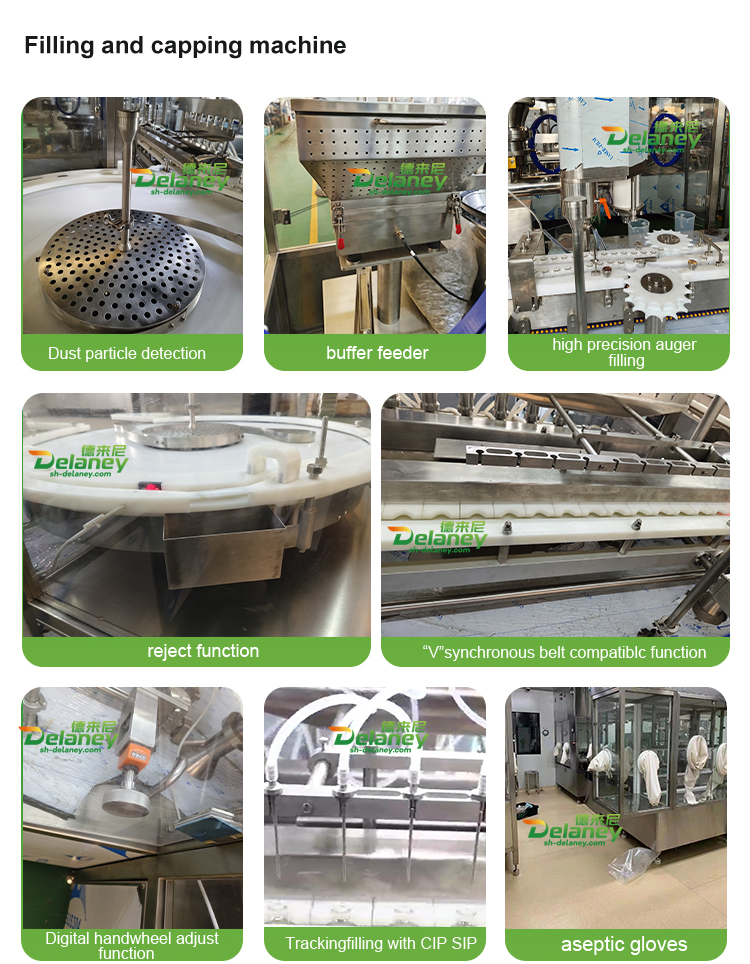

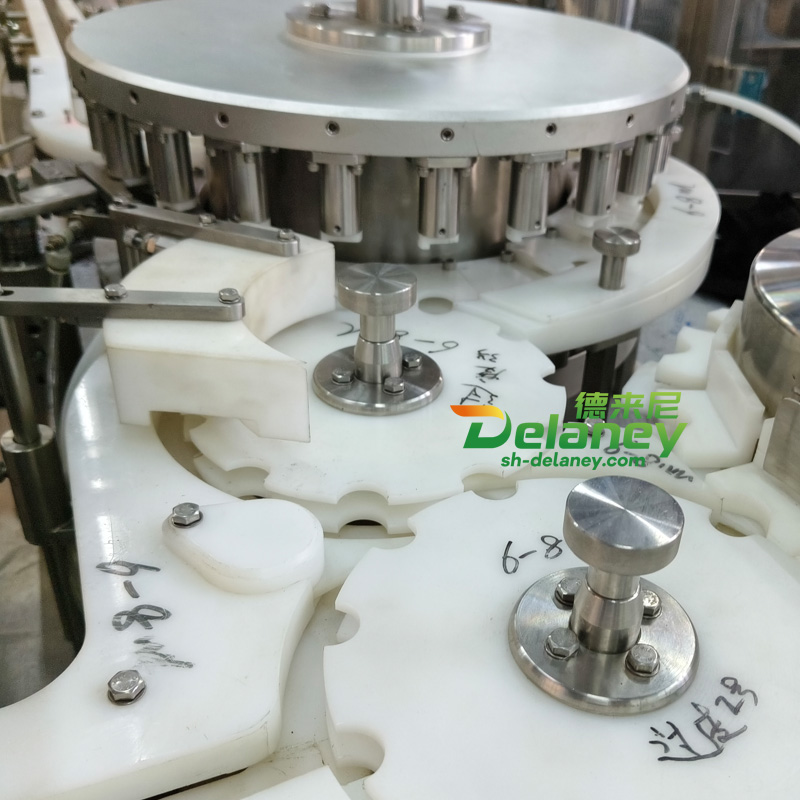

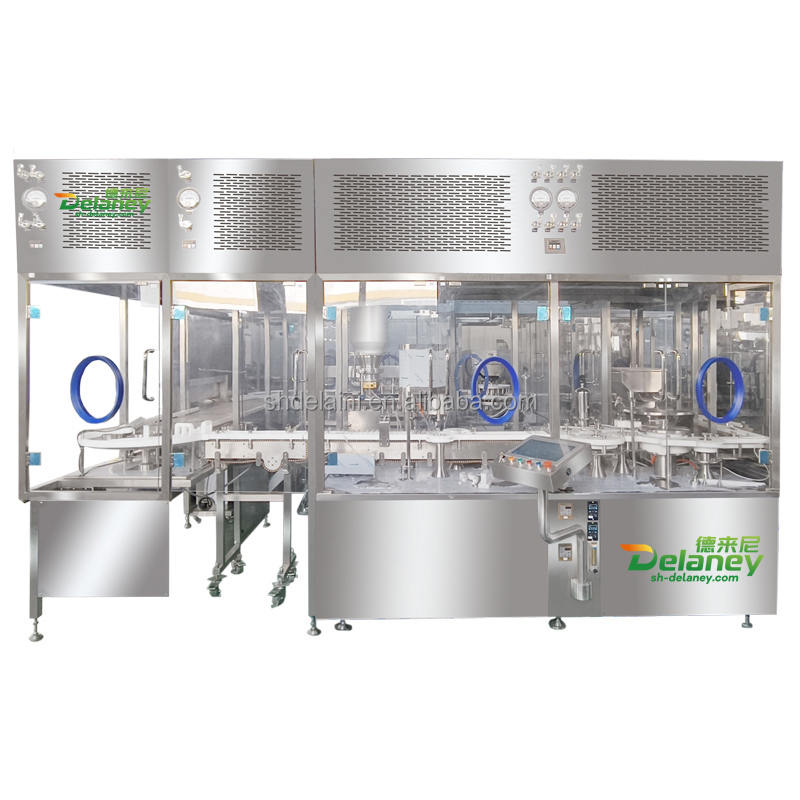

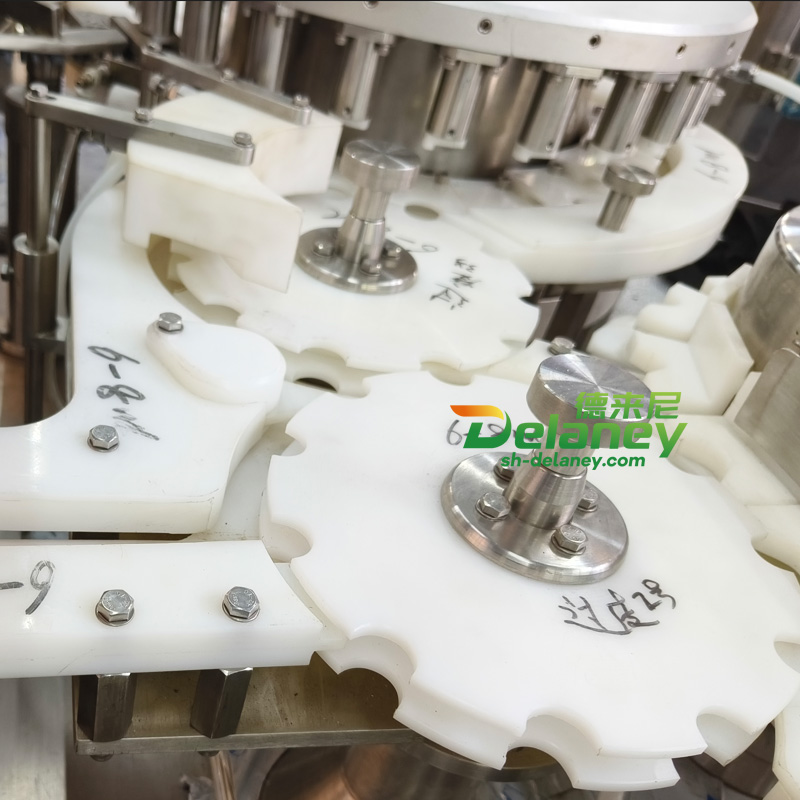

The machine is a continuous linear multi-function filling device for handling aseptic injectable liquids under clean environments, featuring a "V" shape conveyor for vial transfer from infeed to outfeed. This universal conveyor belt requires no size-part change when handling vial sizes from 2ml to 100ml.
