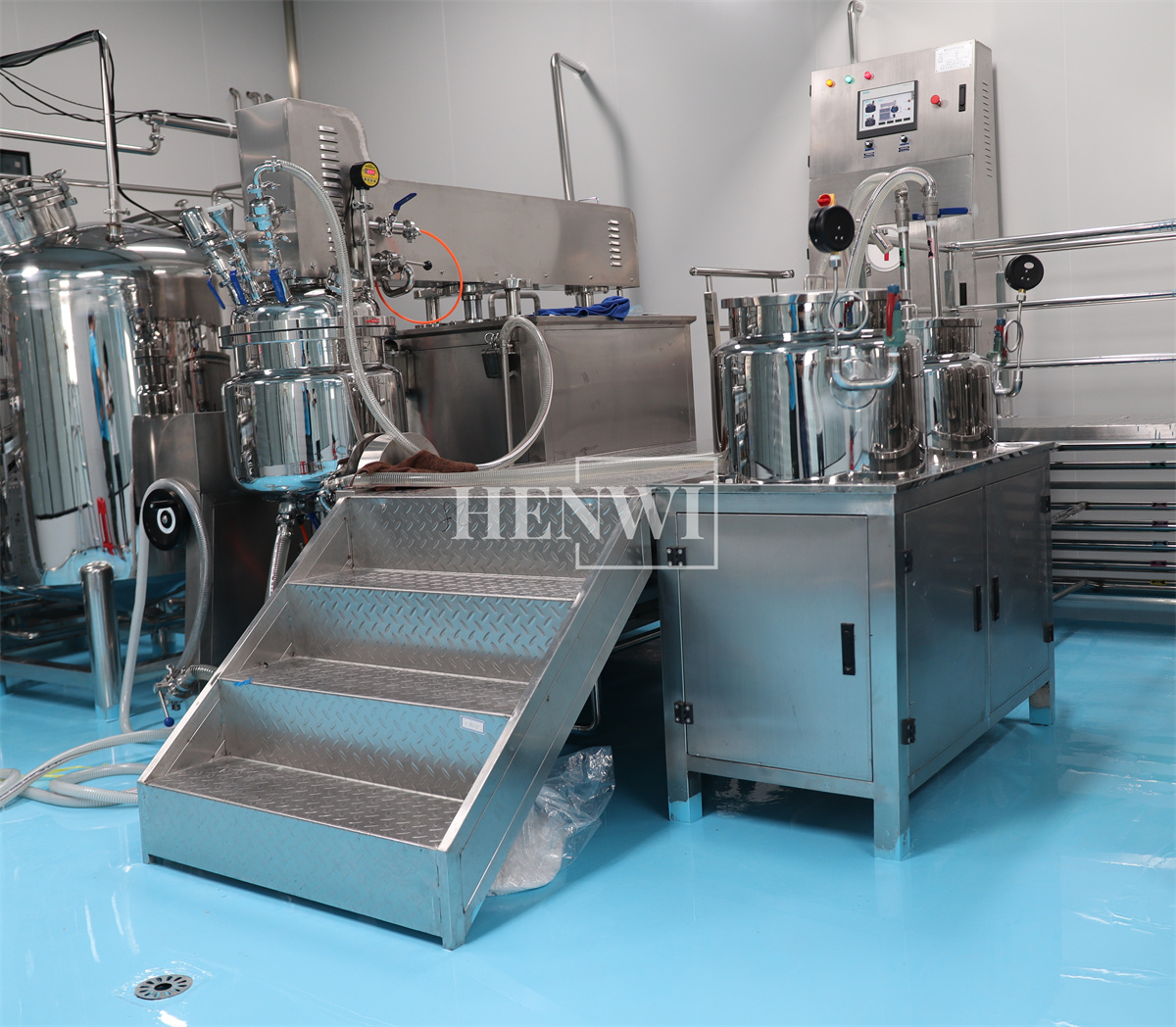

Henwi100-500Lters Hair Care Produce Machine Supplier Hair Color Making Equipment Hair Dye Shampoo Cream Vacuum Emulsifying Mixer

Product Description

HENWI TECHNOLOGY
Manufacturer of Cosmetic | Pharmaceutical | Food | Daily Chemical Industrial | GMP Standard
Products Description

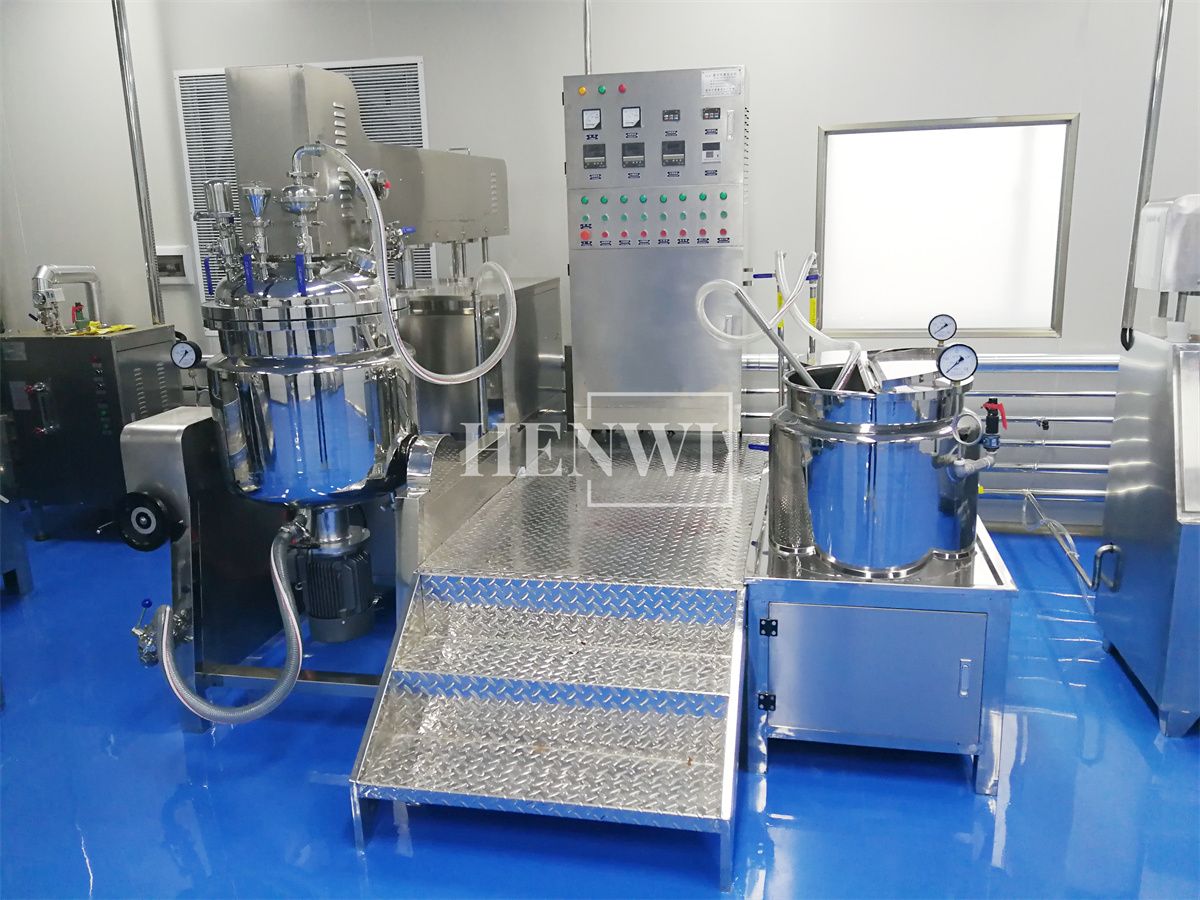

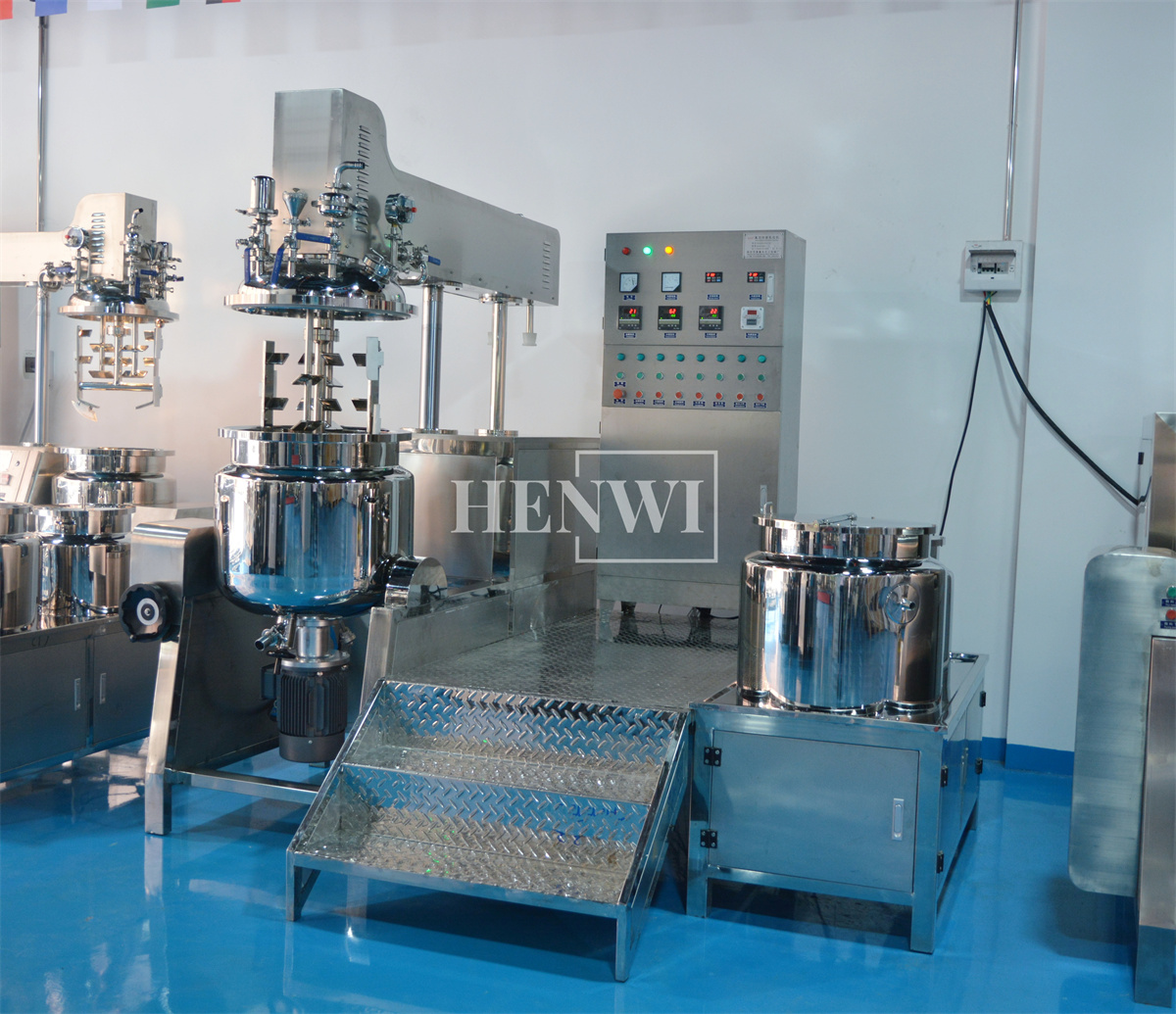

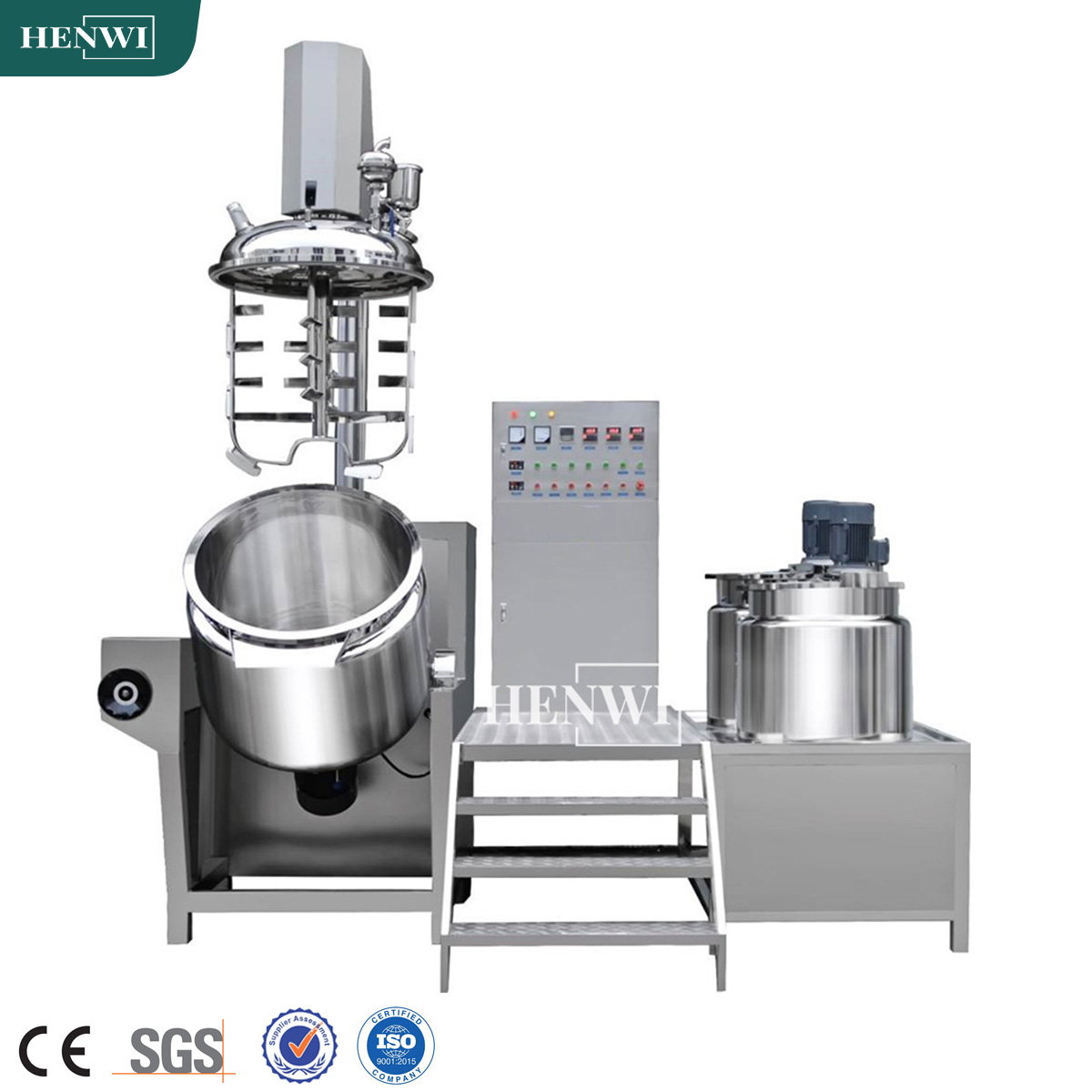

Hydraulic Lifting Vacuum Emulsifier Mixer

The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.

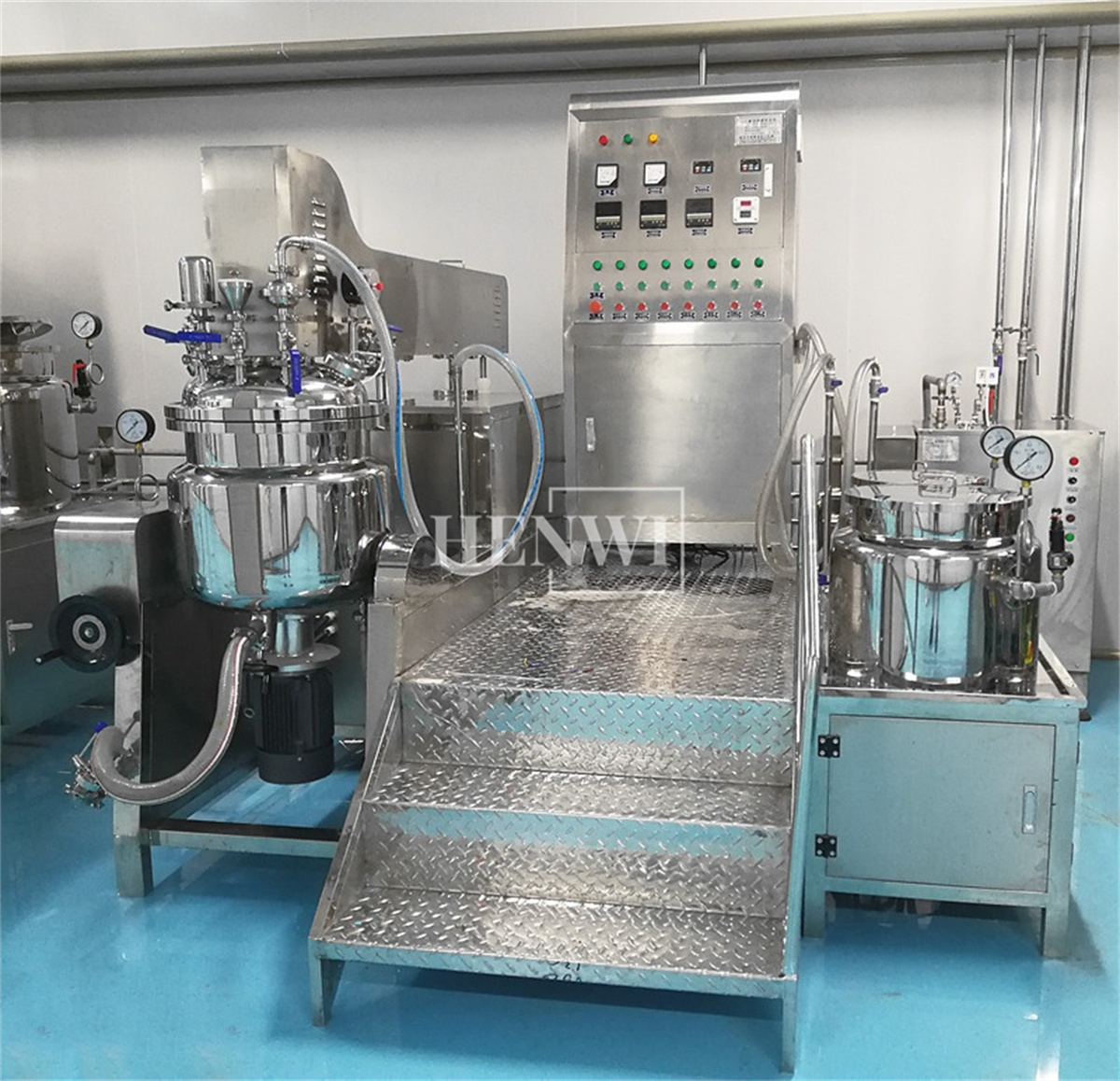

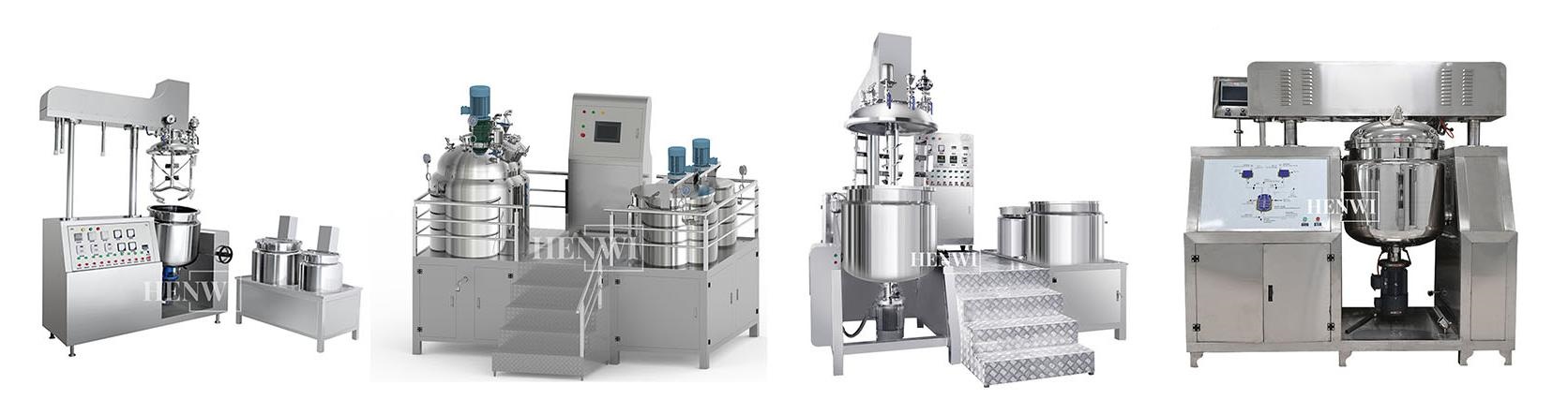

Hydraulic lifting vacuum emulsifier mixer overview

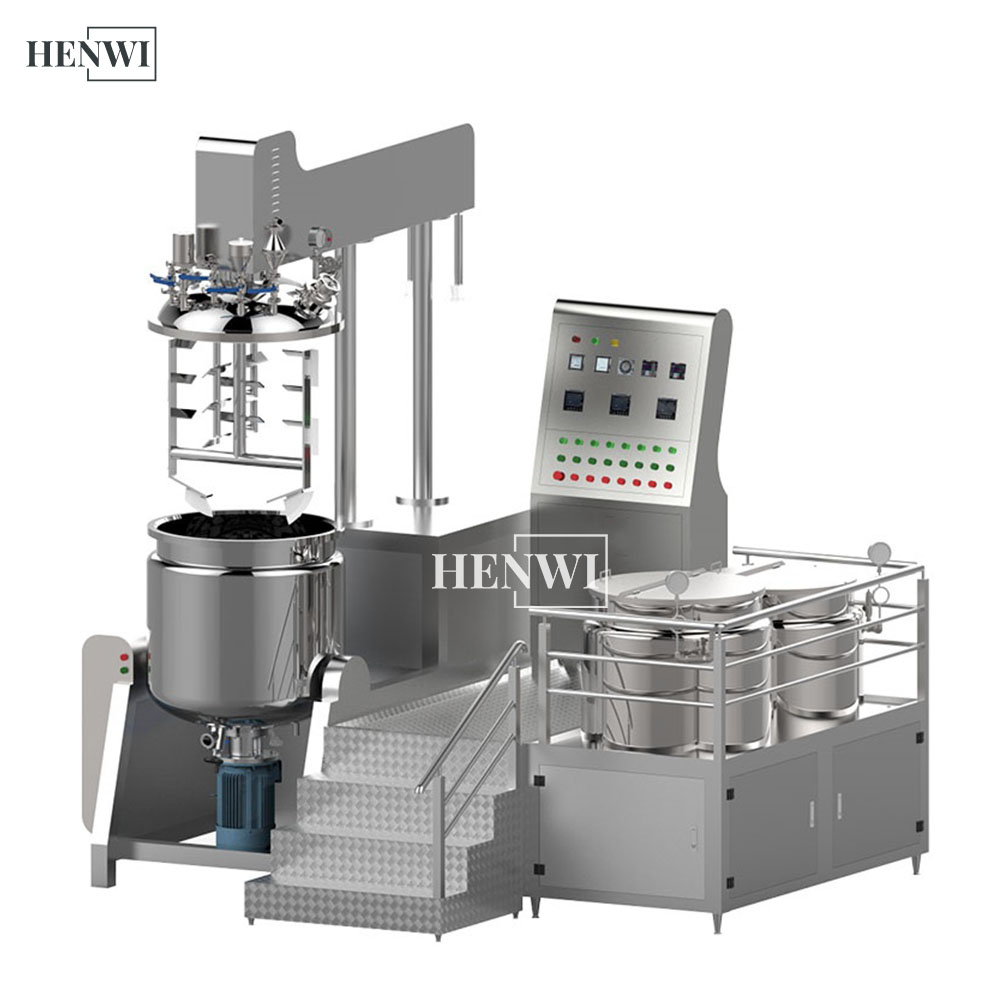

Standard configuration layout
Standard Configuration
  • Emulsifier, water phase tanks, oil phase tank
  • Three-layer tank, steam or electric heating
  • Variable frequency speed scraper mixing
  • 3000rpm high-speed homogenizer, fineness 200nm - 2um
  • Vacuum pumps and sync solenoid valves
  • Stainless steel platform and stairs
  • Button or HMI operation
Application
Application Range
Working Process

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.

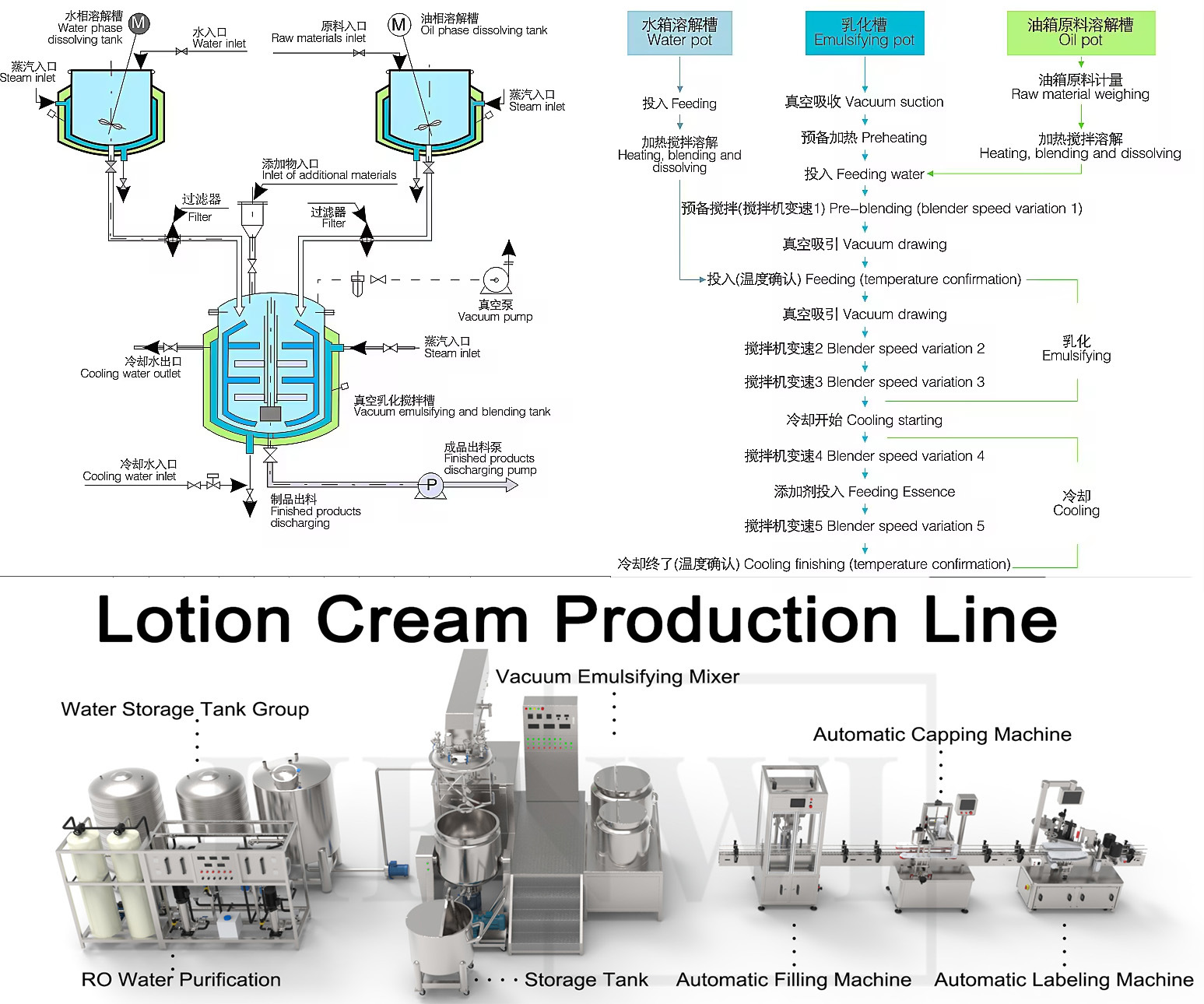

Working Process Diagram
Details Images

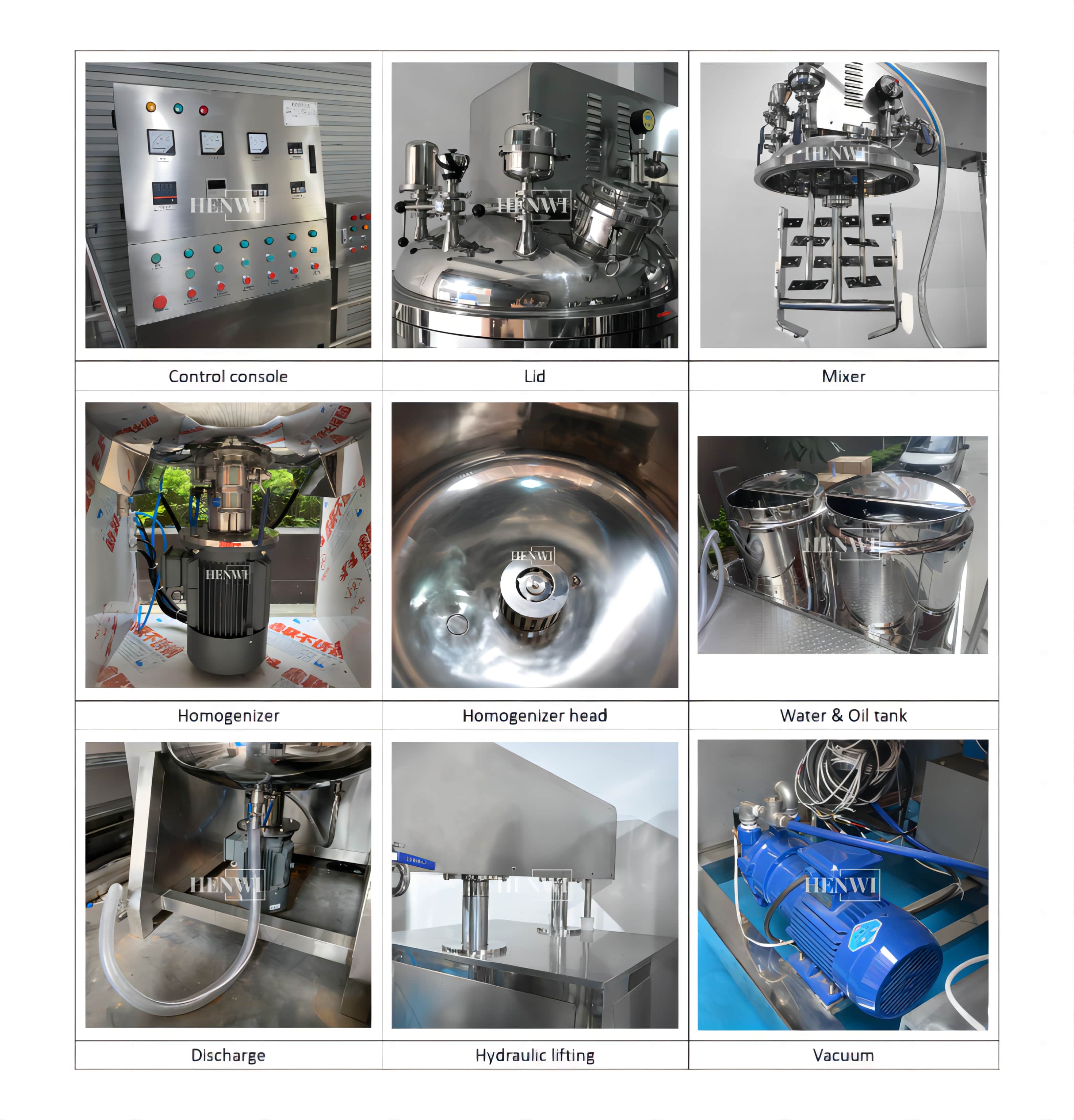

Detail Image 1

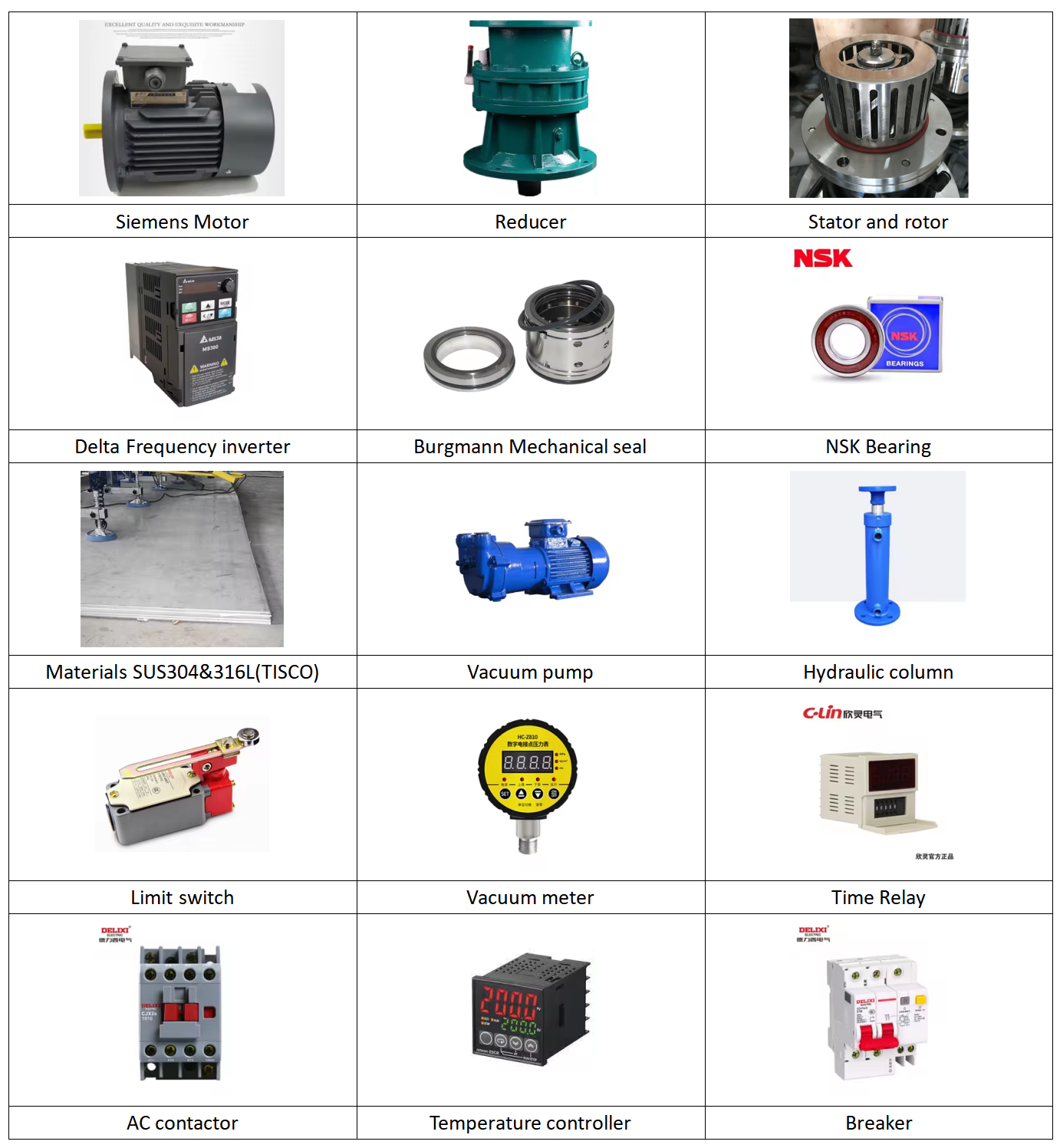

Detail Image 2
Product Parameters
1 Model: HWVM-LT-100L
2 Working capacity 100 Liters
3 Heating method Steam/electric
4 Mixing type Upper frame oar scraper mixer
5 Mixing motor power 1.5KW
6 Mixing frequency inverter 1.5KW
7 Mixing speed 0-65rpm
8 Homogenizer type Bottom homogenizer
9 Homogenizer frequency inverter 3KW
10 Homogenizer speed 0-3000rpm(50Hz) / 0-3600rpm(60Hz)
11 Hydraulic lifting system 0.55KW
12 Vacuum system Water cycle vacuum pump, power: 1.1KW
13 Control method Button control
14 Frequency inverter Delta
15 Electrical components Delixi
16 Jacket Double jacket, 3 layers
17 Tank's materials Inner layer 4mm/SUS316
Middle layer 3mm/SUS304
Outer layer 2mm/SUS304
18 Water and oil phase tank 90L / 60L (With mixing and heating function)

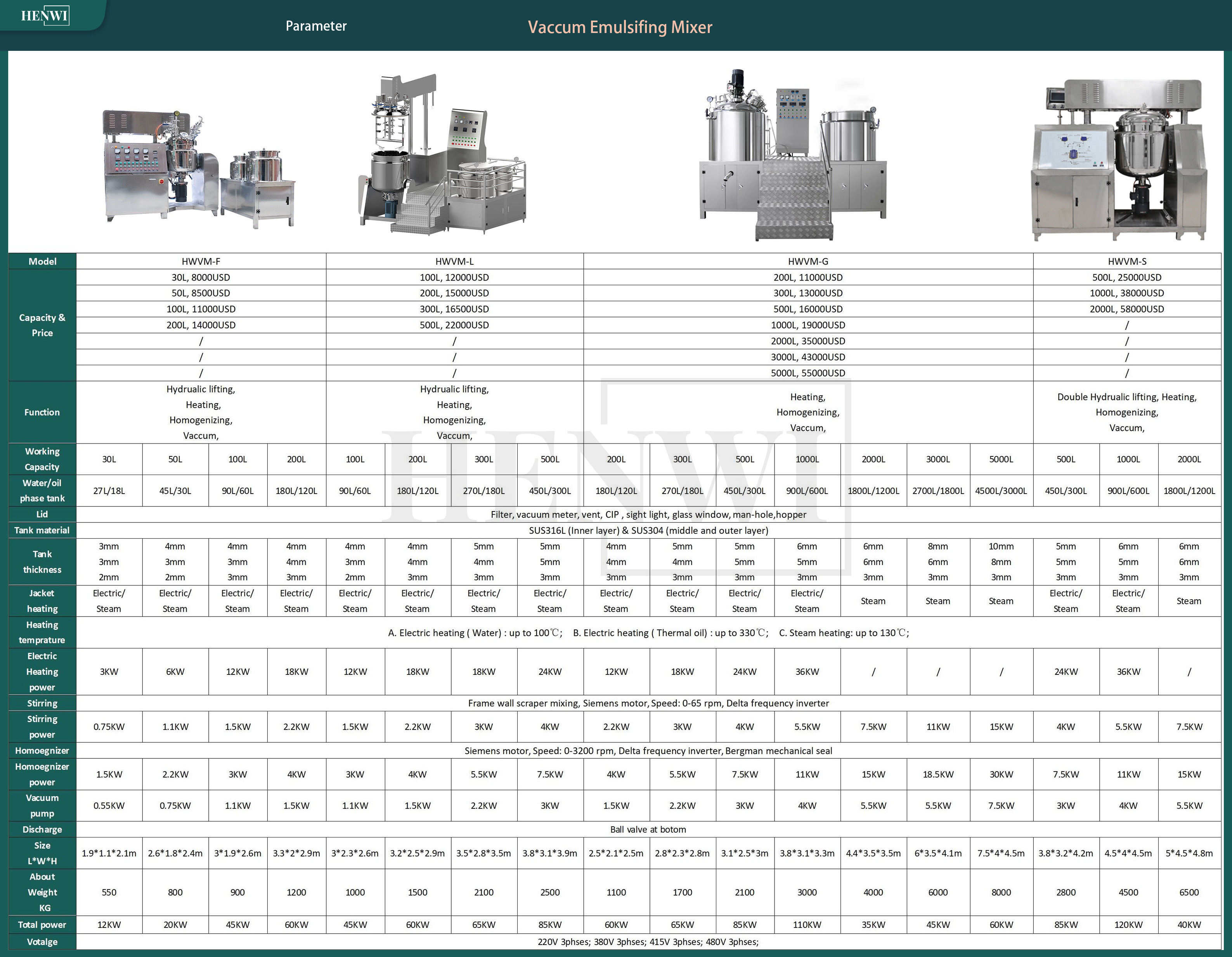

Technical Specifications Sheet
Certifications
Certificates
Company Profile

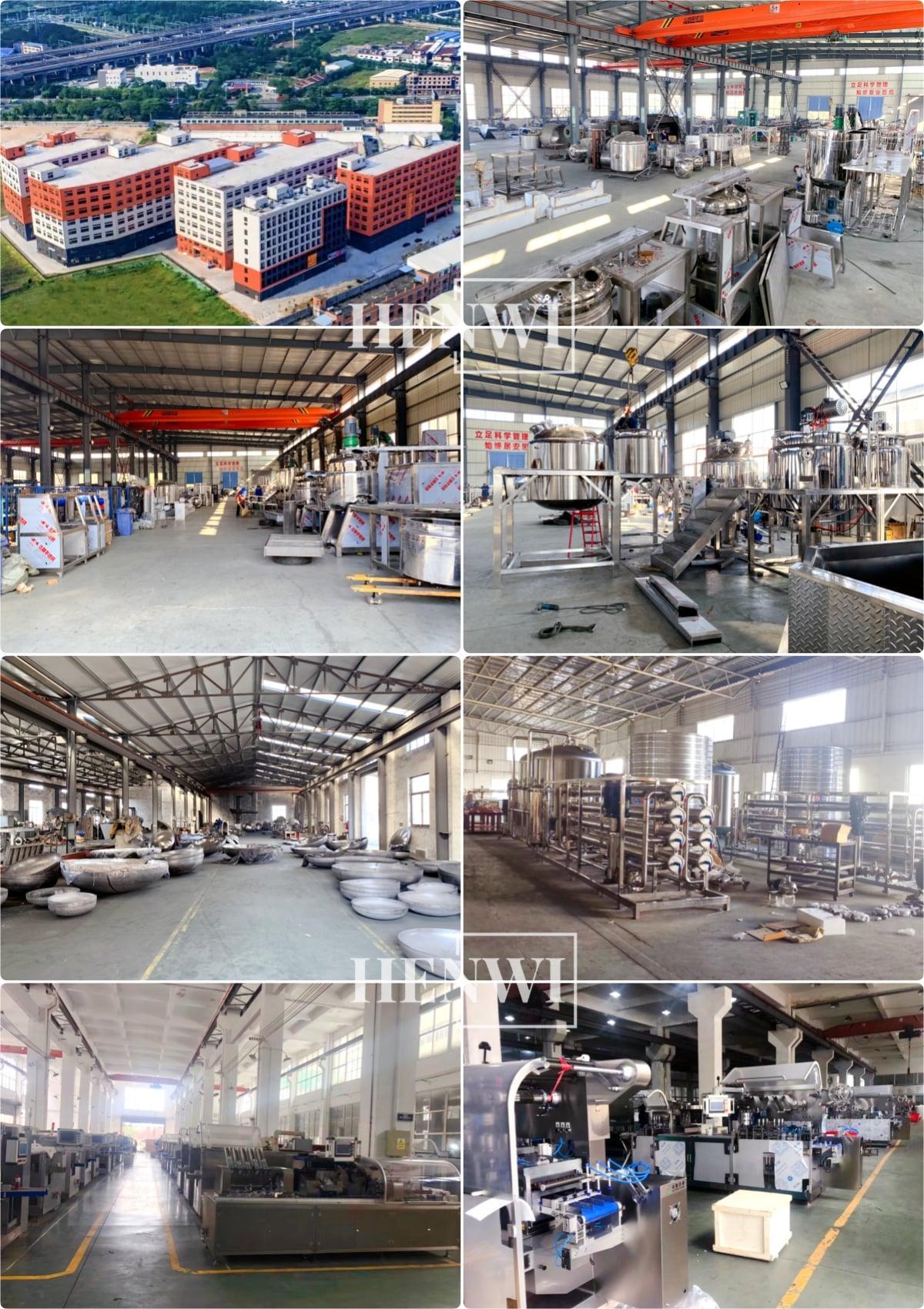

Company facility 1

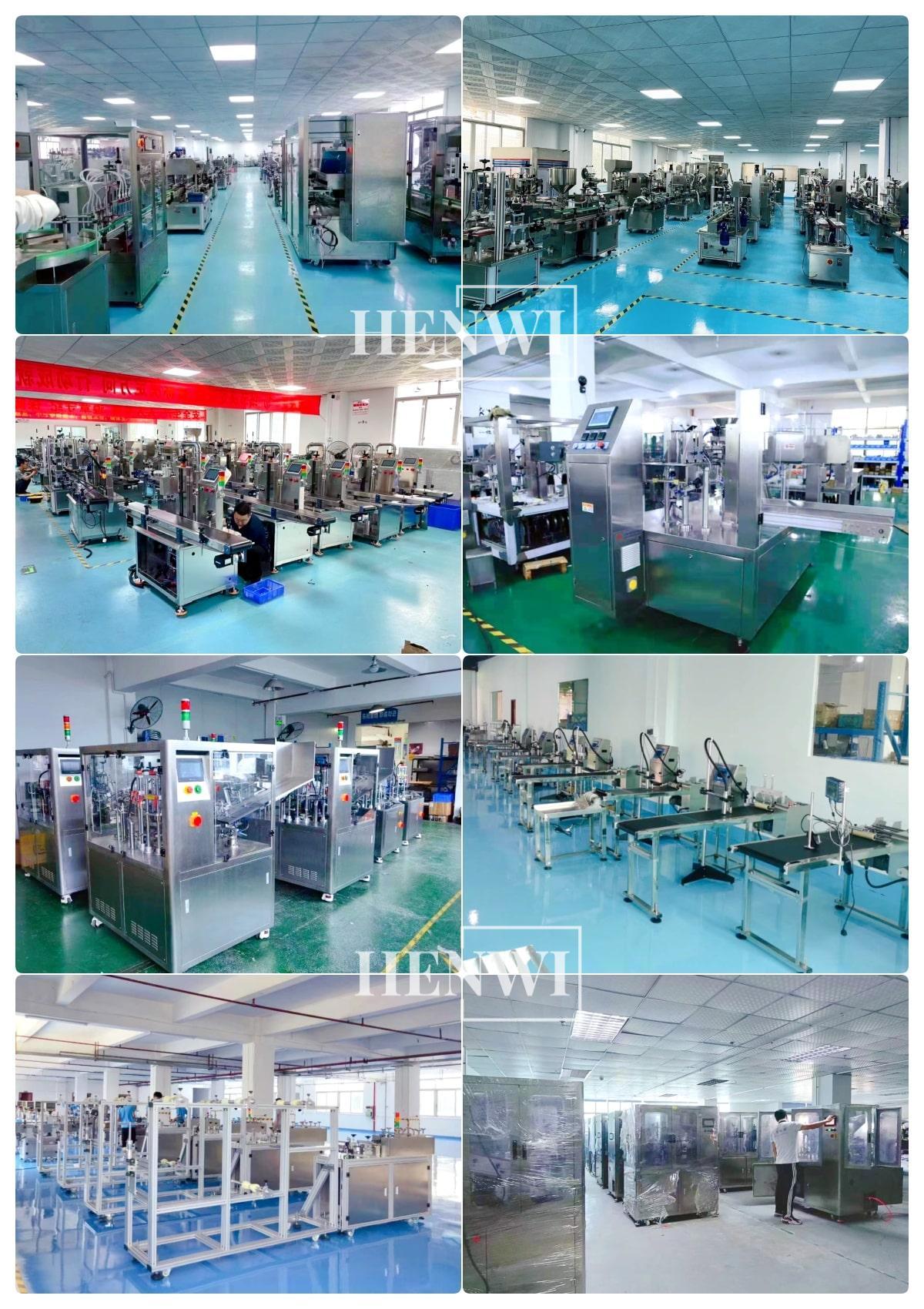

Company facility 2

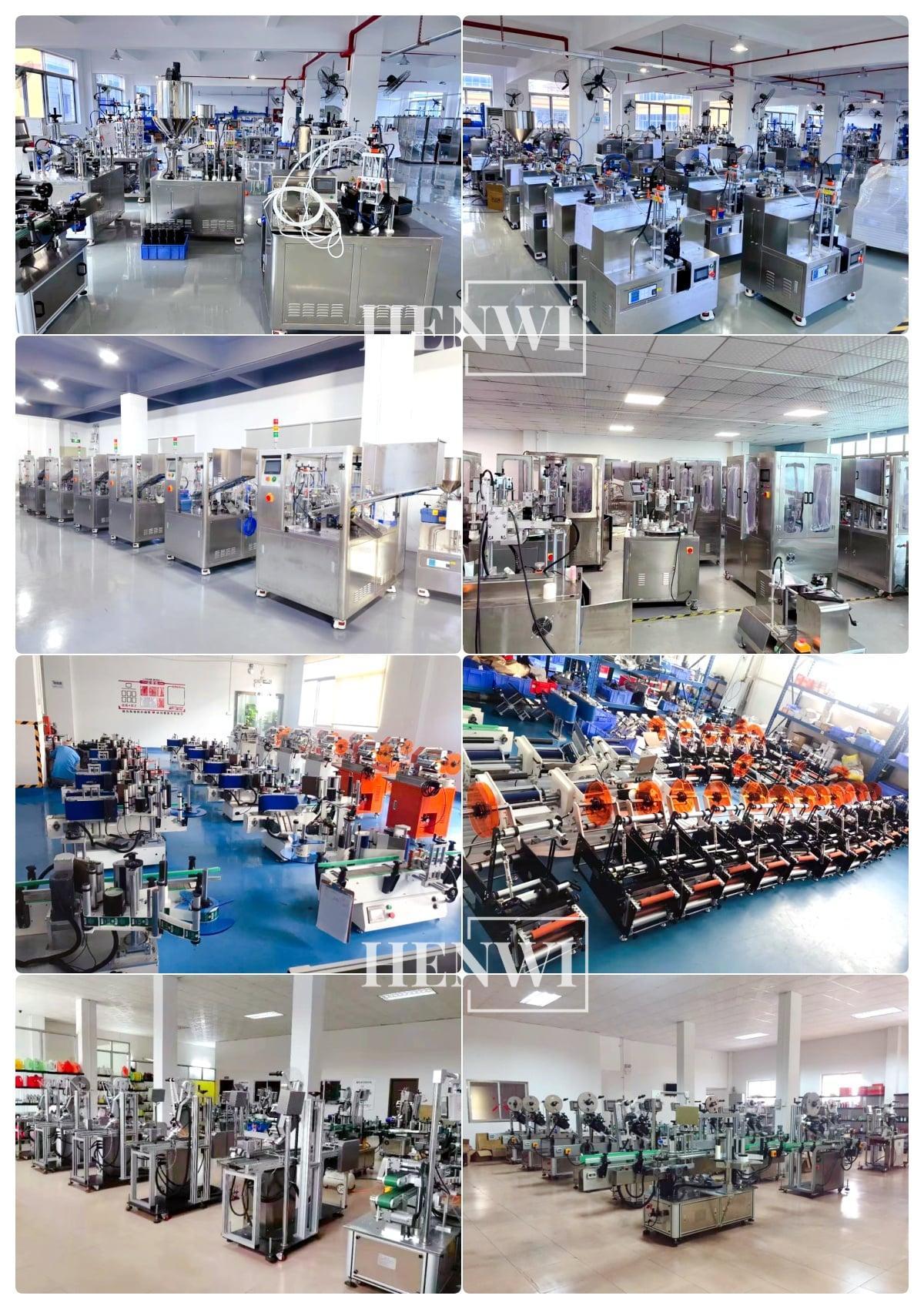

Company facility 3

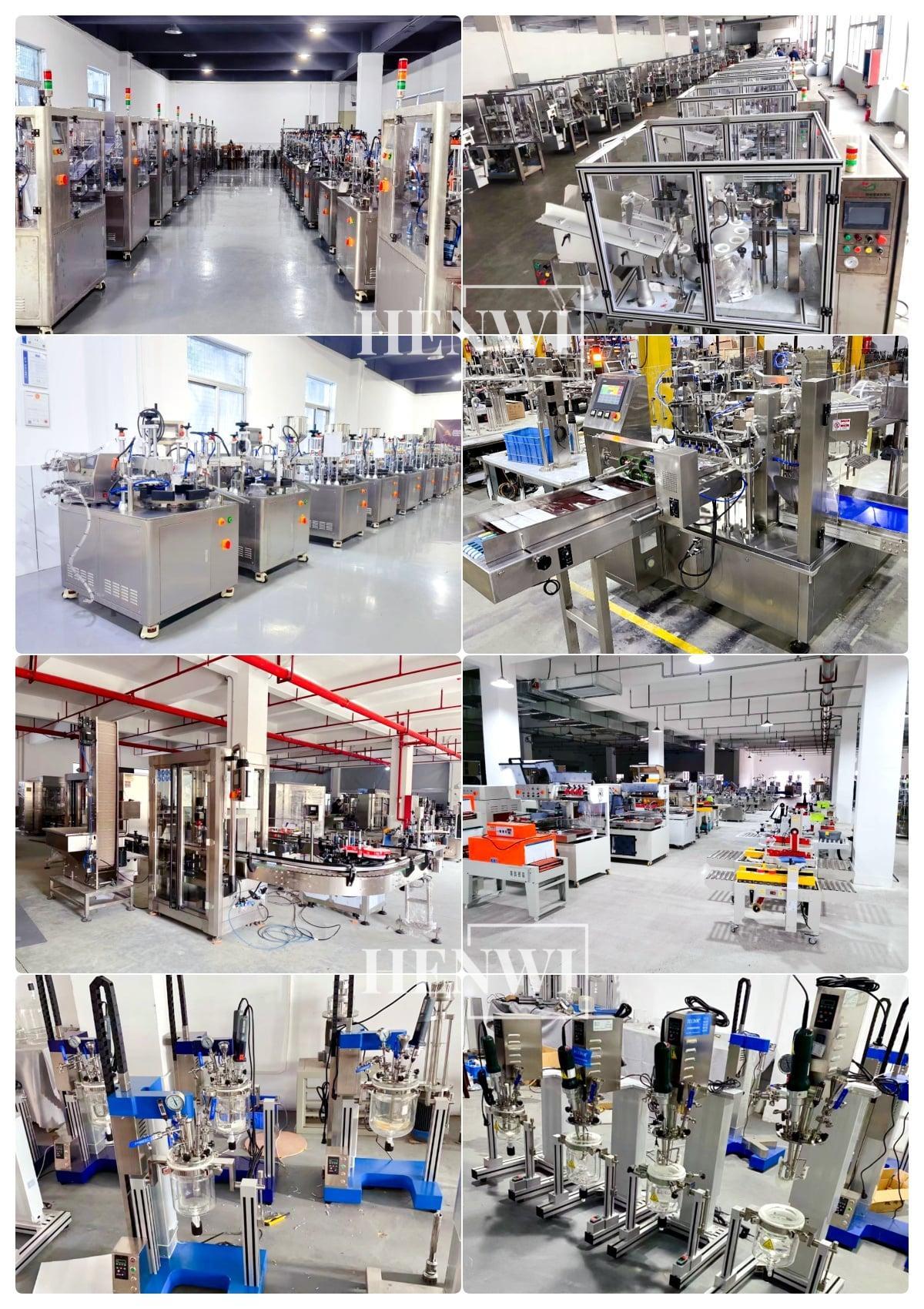

Company facility 4

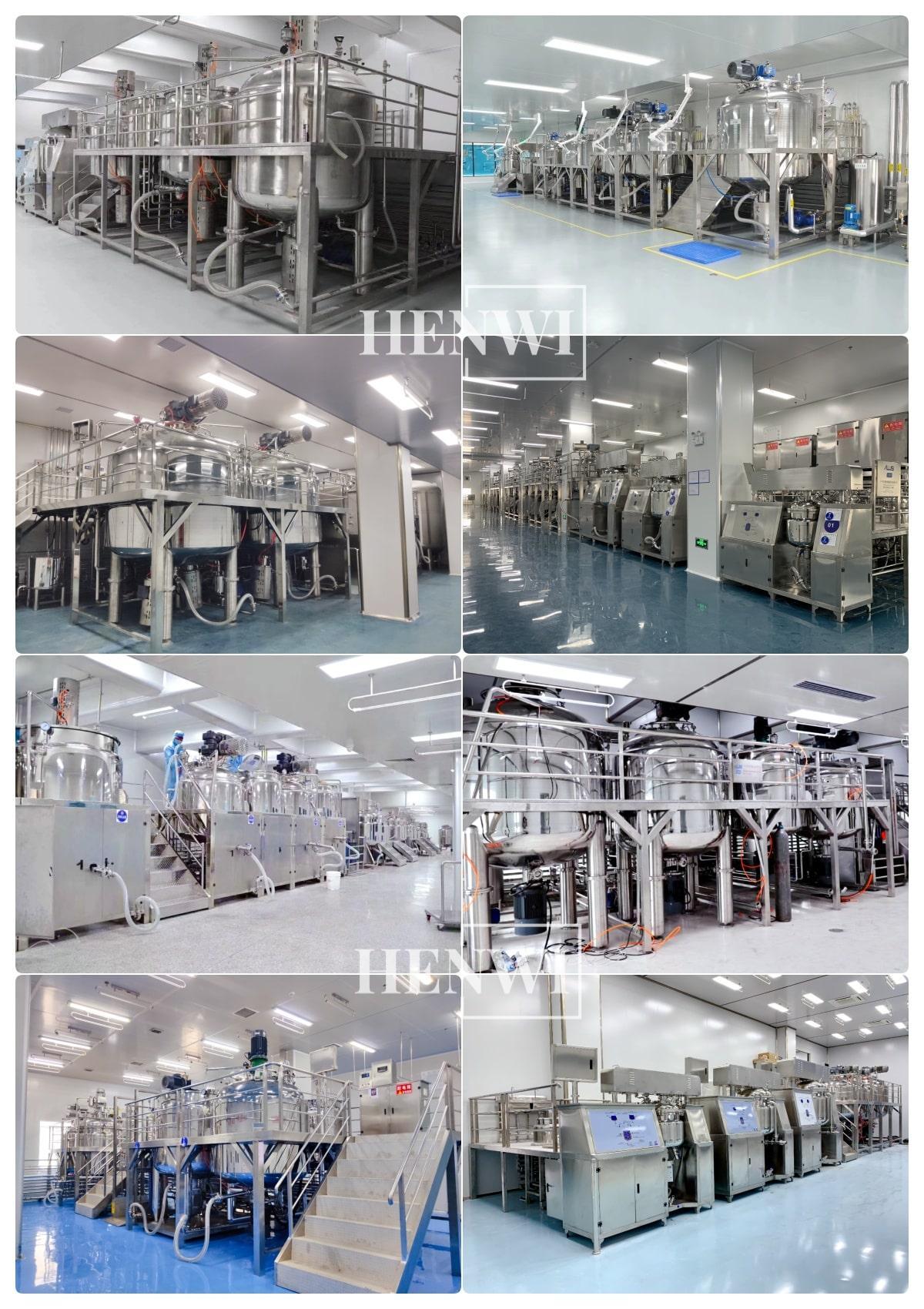

Company facility 5

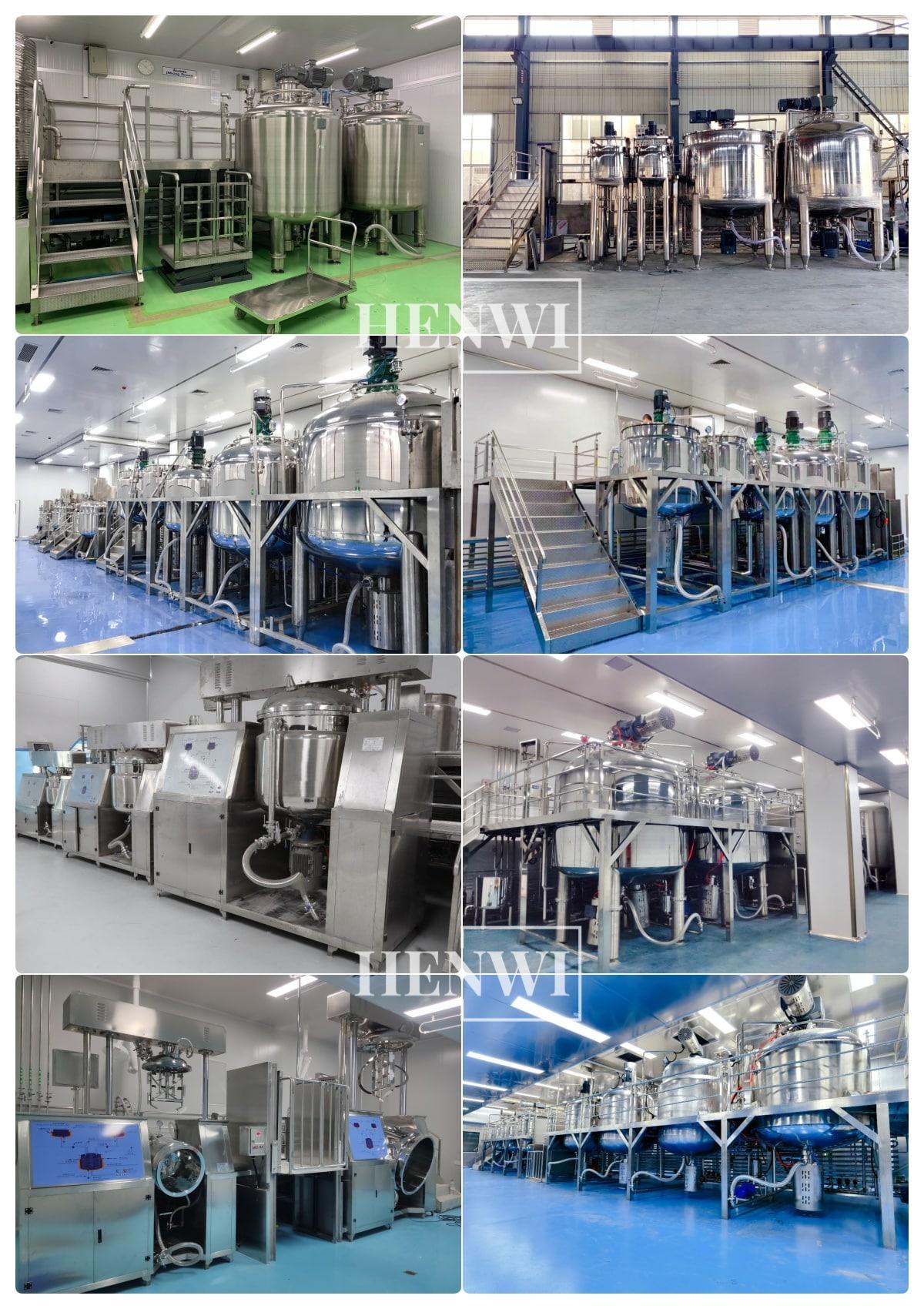

Company facility 6

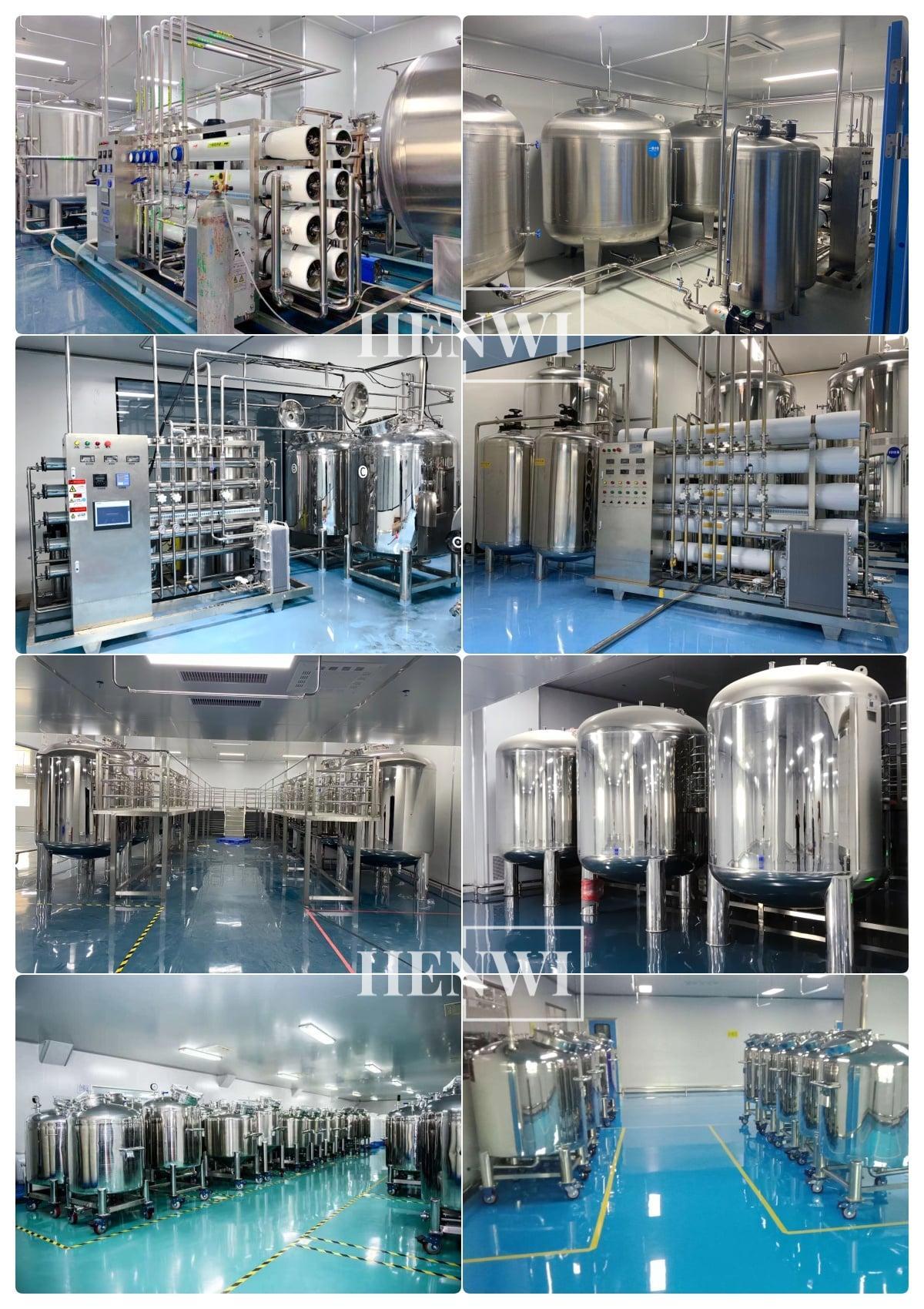

Company facility 7

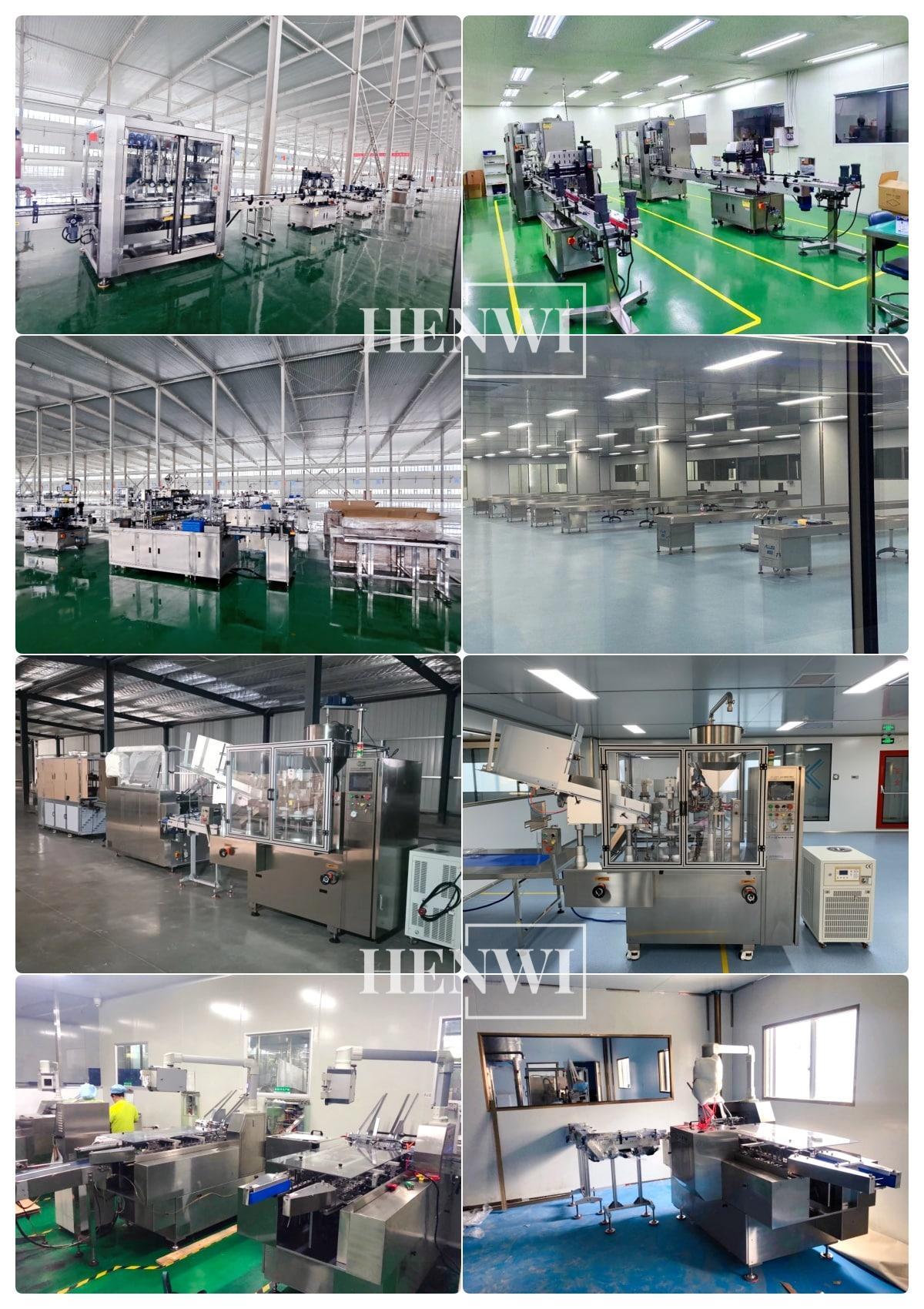

Company facility 8

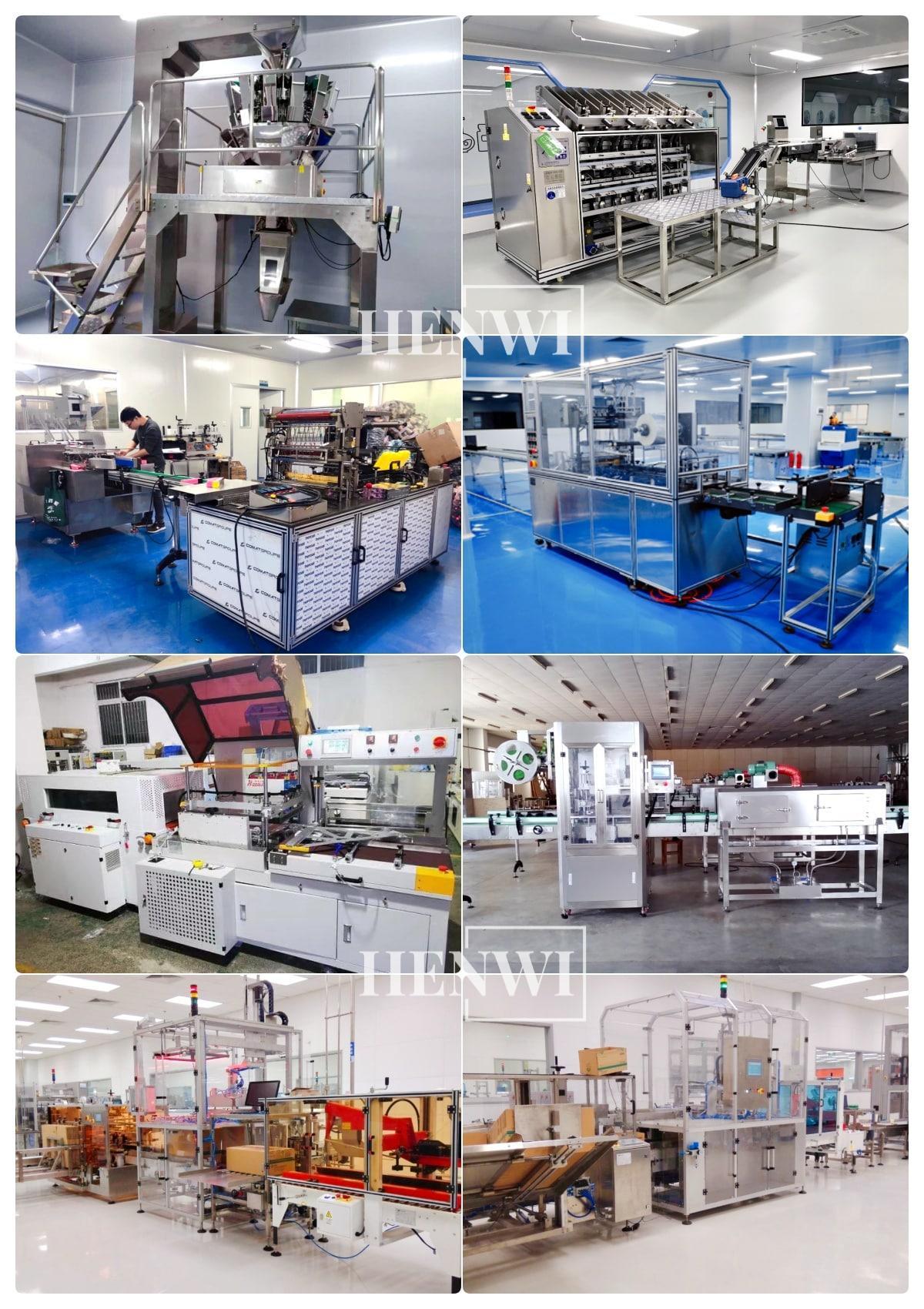

Company facility 9

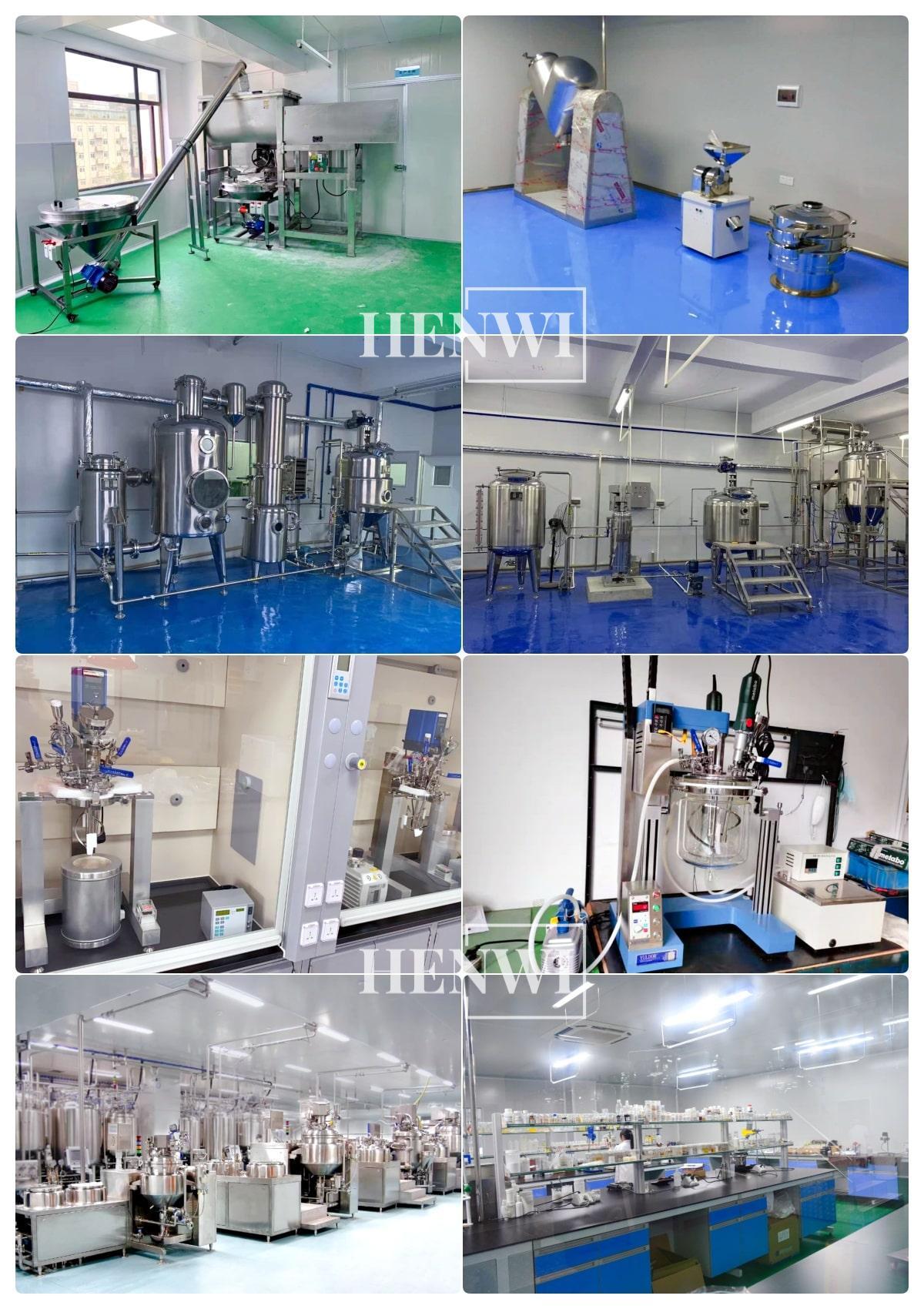

Company facility 10
Factory Overview
Frequently Asked Questions
1. Are you a manufacturer or just a trading company?

Foshan Henwi Technology company is one of the top technology-oriented machinery manufacturer in China.

2. What production line do you recommend for paste or cream products?
We recommend the following configuration:
RO water treatment equipment → Vacuum homogenizer → Storage tank → Paste filling machine or Heating mixing filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine, etc.
3. What production line do you recommend for liquid products?
We recommend the following machinery setup:
RO water treatment equipment → Blending tank → Storage tank → Liquid filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine, etc.
4. What production line setup is recommended for Perfume manufacturing?
We recommend the following equipment process:
RO water treatment equipment → Perfume making machine → Perfume storage tank → Perfume filling machine → Perfume crimping machine → Perfume collar machine → Inkjet printer → Shrink film packing machine, etc.
There are Full automatic production line and Semi automatic production line for your option.
5. What is your payment term?

We usually pay by T/T., 40% deposit after sales confirmation, 60% before delivery.

6. What is your delivery day?

Our delivery day is about 15-30 days after receive the deposit.
