Compatible Products: Toner, Lotion, Moisture Cream, Serum, Essential Oils, Perfume

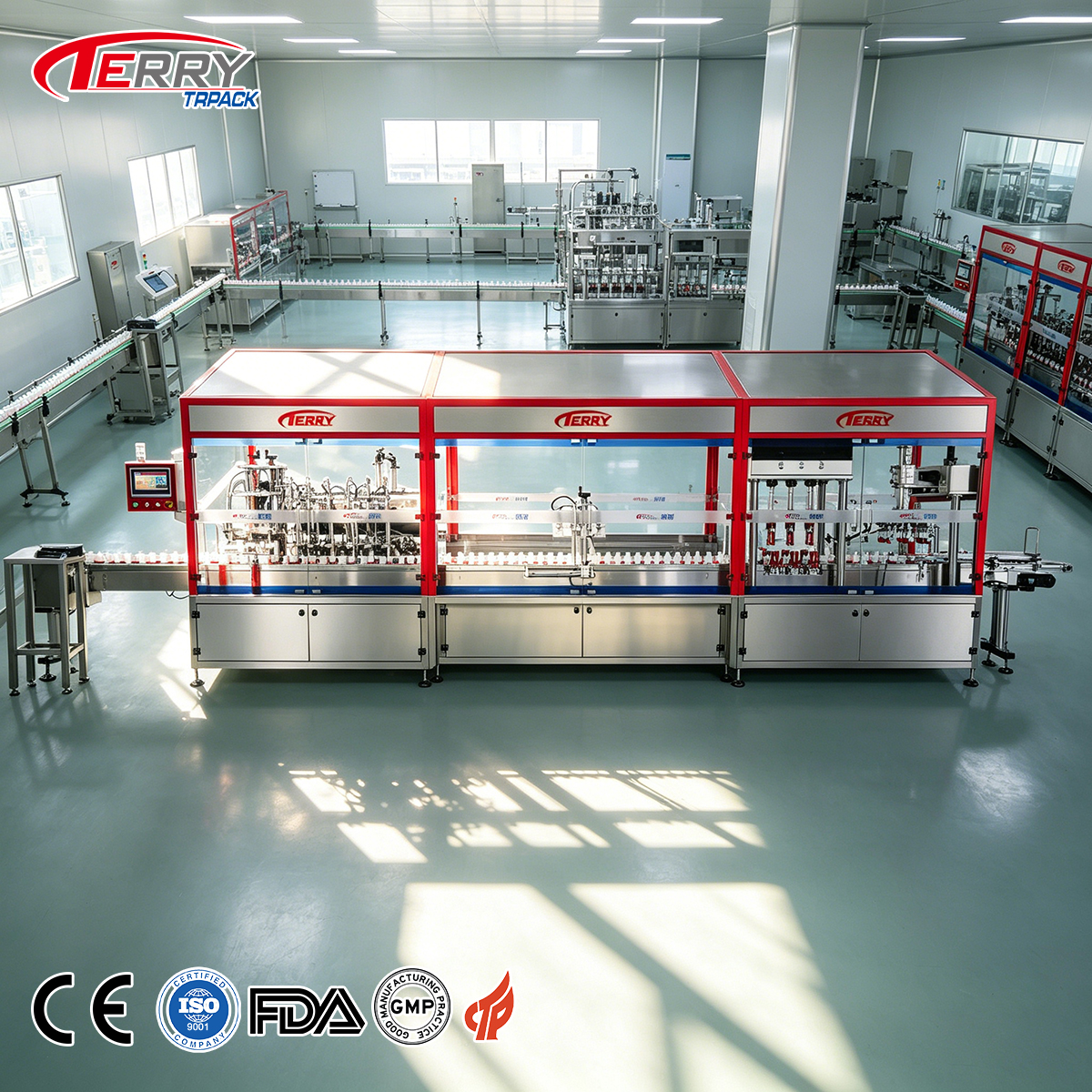

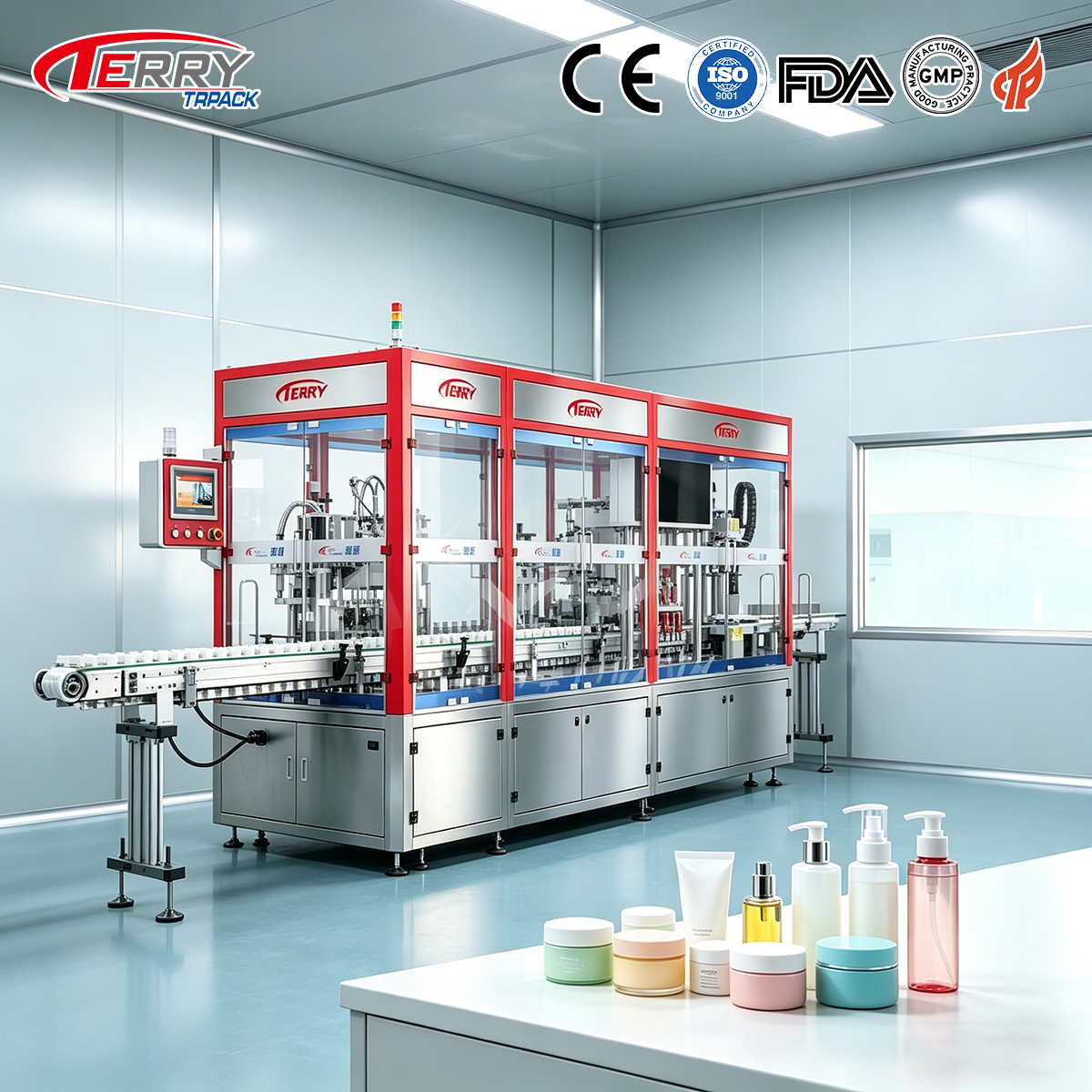

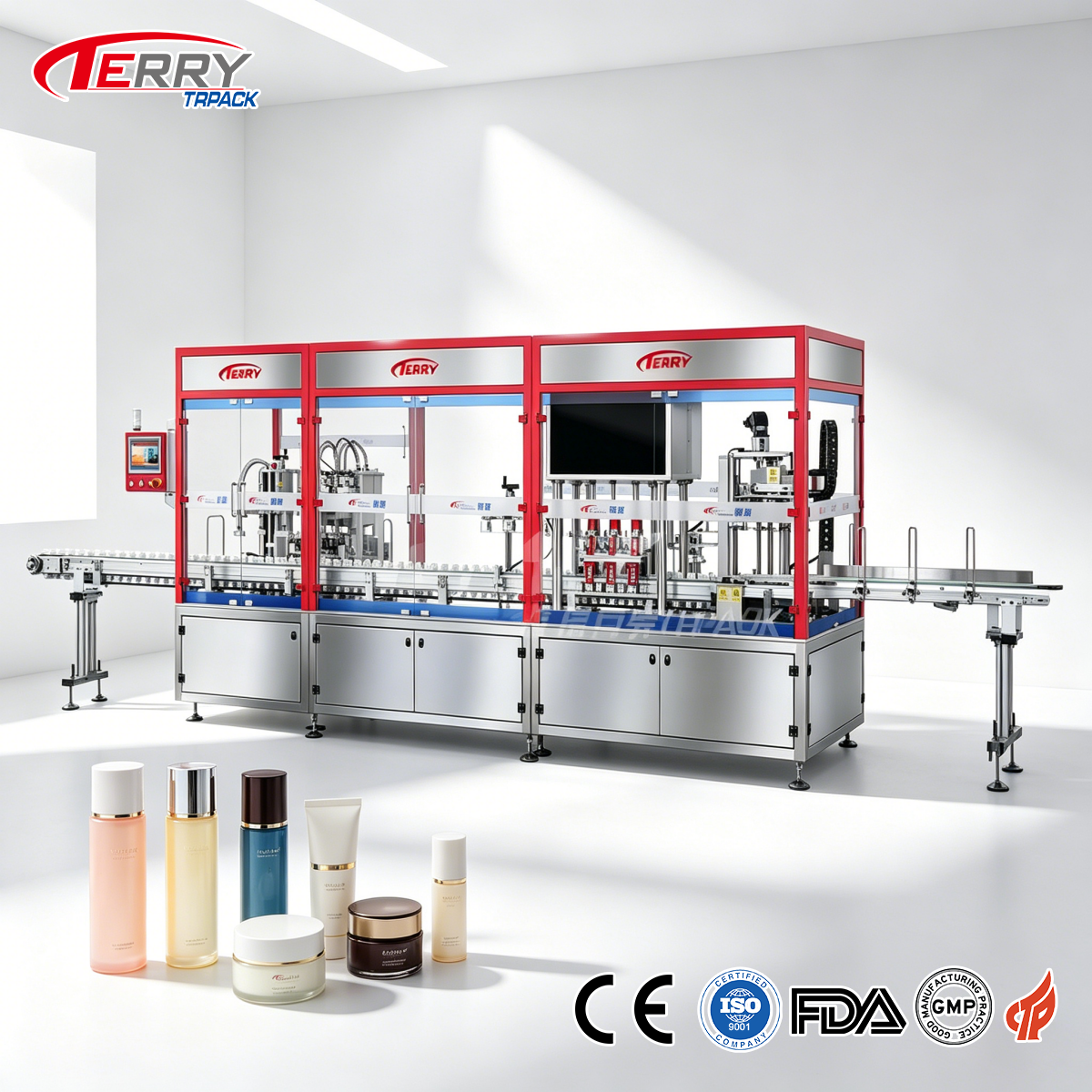

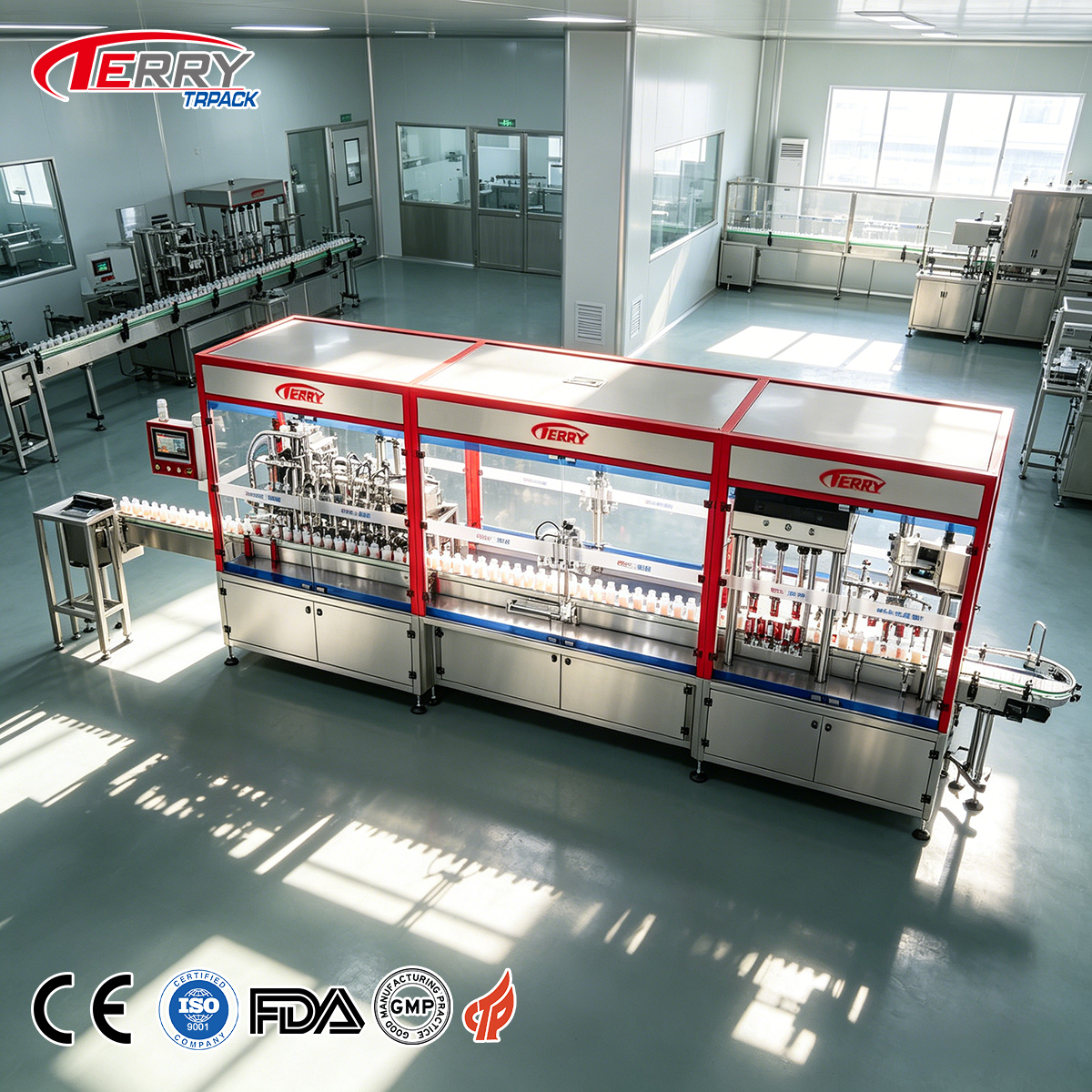

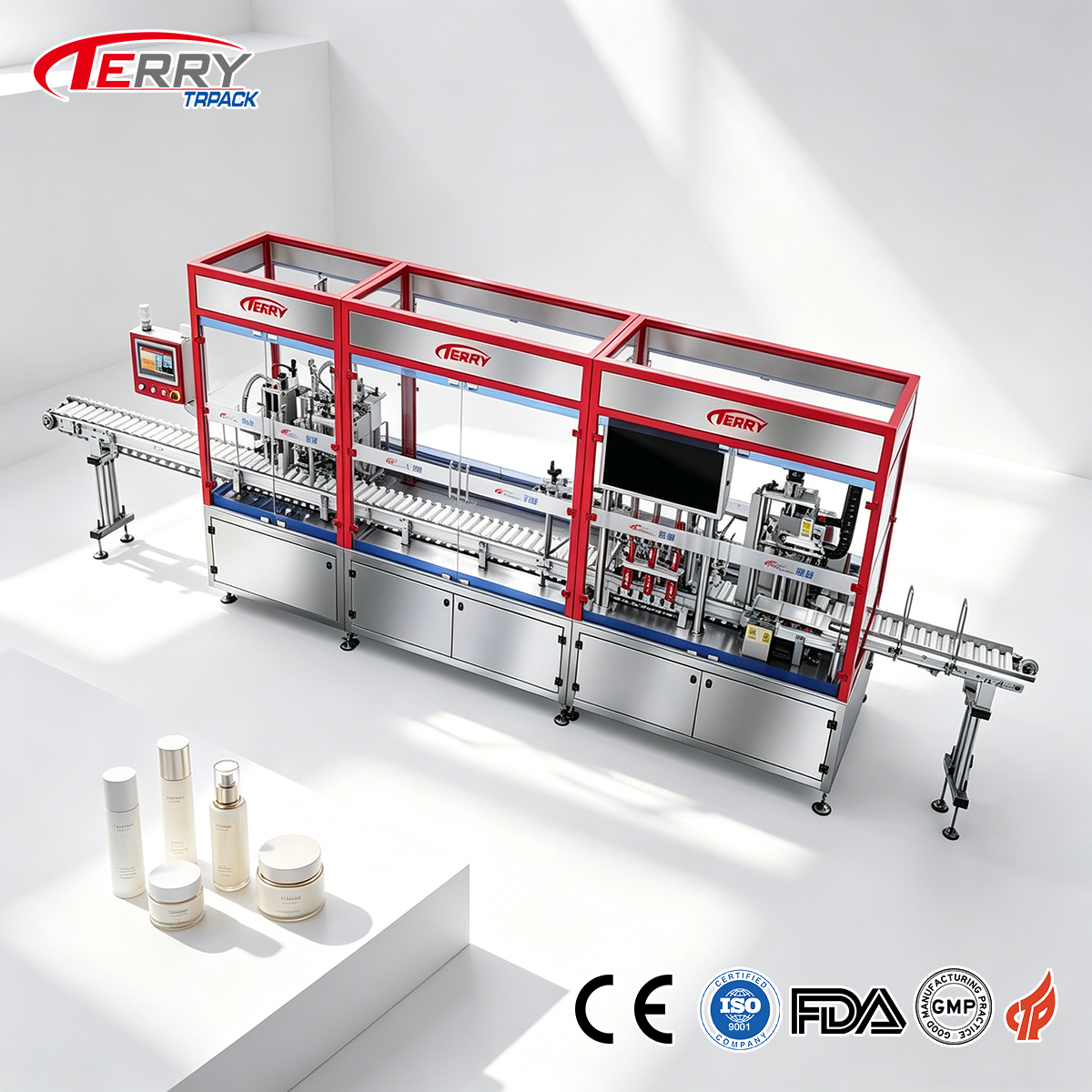

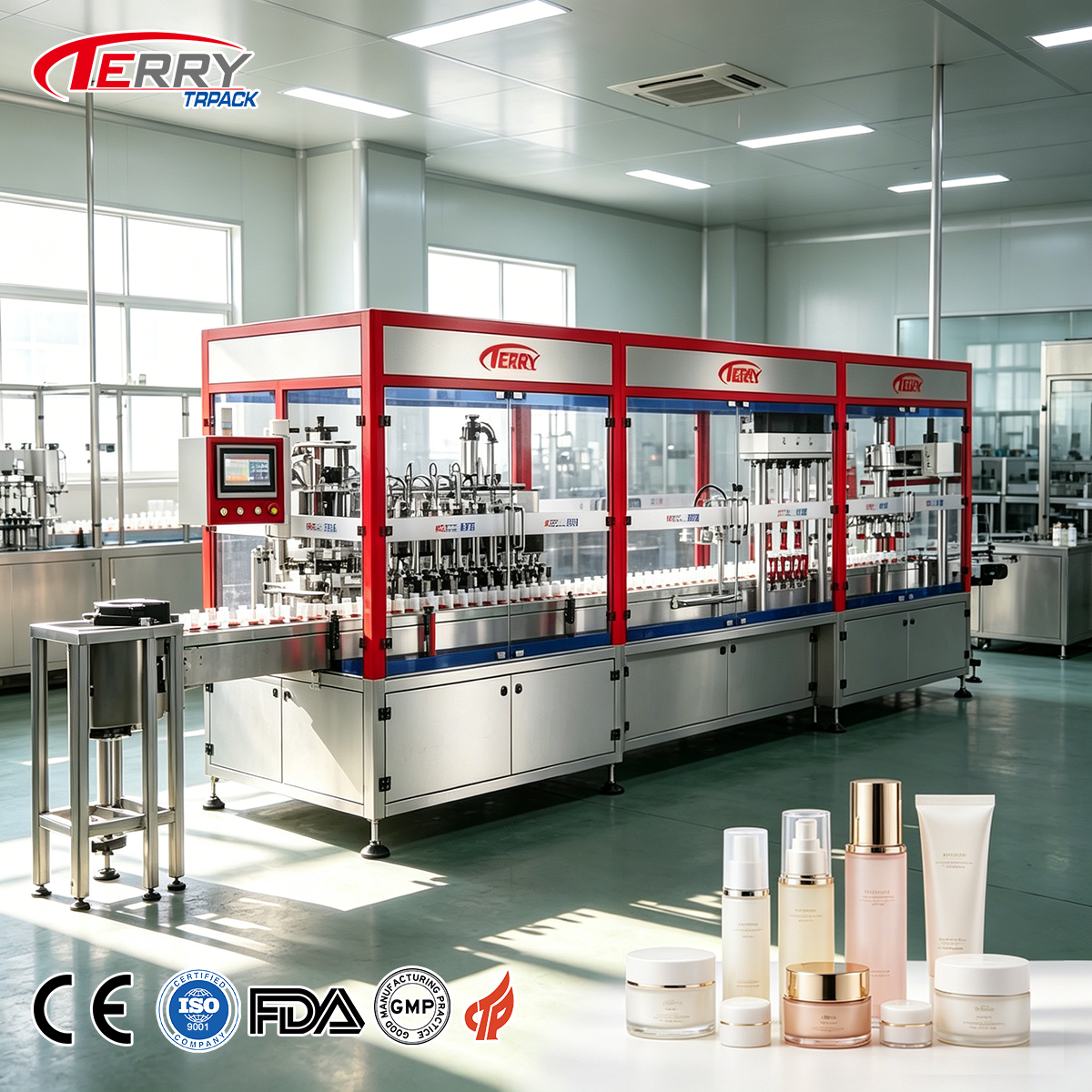

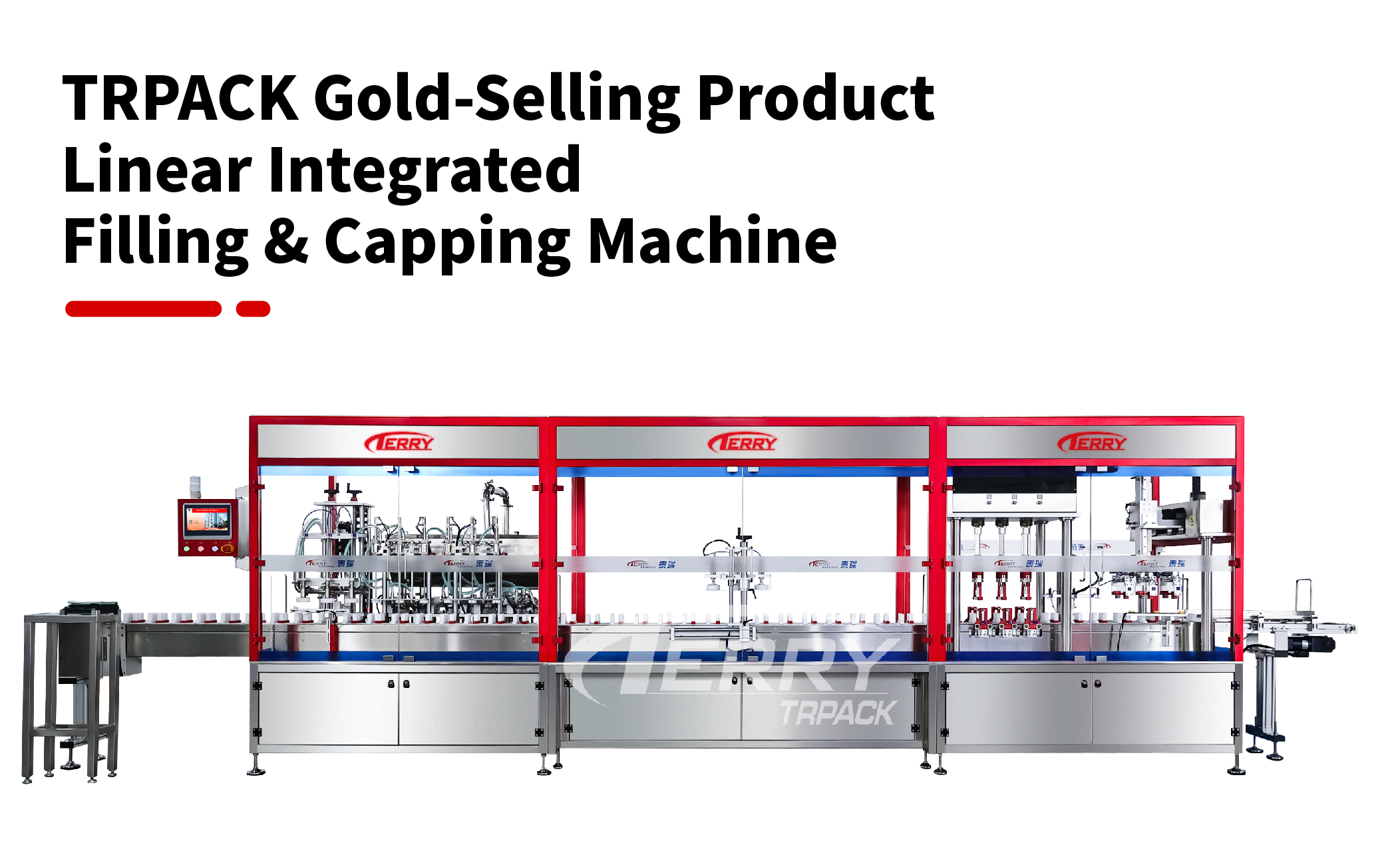

The TR-SRS-6S is a very efficient, high-output machine that automatically fills and capping bottles. The whole unit is made from SUS304 stainless steel, with parts that come into contact with materials made from SUS316L stainless steel.
Servo motors control the filling process, using a system that measures the volume of the liquid to ensure it is added exactly. PLC control and touchscreen HMI operation make it easy and efficient to use the machine. The filler also has an electronic scale that is very precise. This scale sends the weight information automatically, which means that the dose can be adjusted automatically.
This fully automated equipment can fill skincare products like toners, lotions and creams all at the same time.
| Filling Head | 6 pcs (3 Half-Fill + 3 Refill to full); 8 pcs (4 Half-Fill + 4 Refill to full) |
| Filling Volume | 20-300ml; 500ml is filled twice. The filling capacity range varies depending on the properties of the raw materials and the feeding device. |
| Filling Accuracy | 20-100ml ±0.5g ; 101-300ml ±0.5% |
| Capping Head | 3 pcs for 6 filing heads; 4 pcs for 8 filing heads |
| Applicable Bottle Type | Bottle Mouth Diameter: Φ50mm - 120mm; Bottle Shoulder Height: 110mm-250mm Customization Accept. |
| Applicable Caps Type | Cap Diameter: Φ15mm - 40mm * Customized molds can be provided according to the customer's products. |
| Production Capacity | 60 bottles/min (500ml shampoo products and 50g cream for example) Actual production capacity varies depending on factors such as product size, packaging material type, and material properties. |
| Air Operated Resource | 0.6 ~ 0.8Mpa (Use dry and clean compressed air.) |
| Air Consumption | 450L/min |
| Power Supply | AC380V 50/60Hz |
| Total Power | 8KW |
| Overall Dimensions (Main Machine) | 8000×1700×2050mm (L×W×H) |
| Overall Weight | 2000 KG |

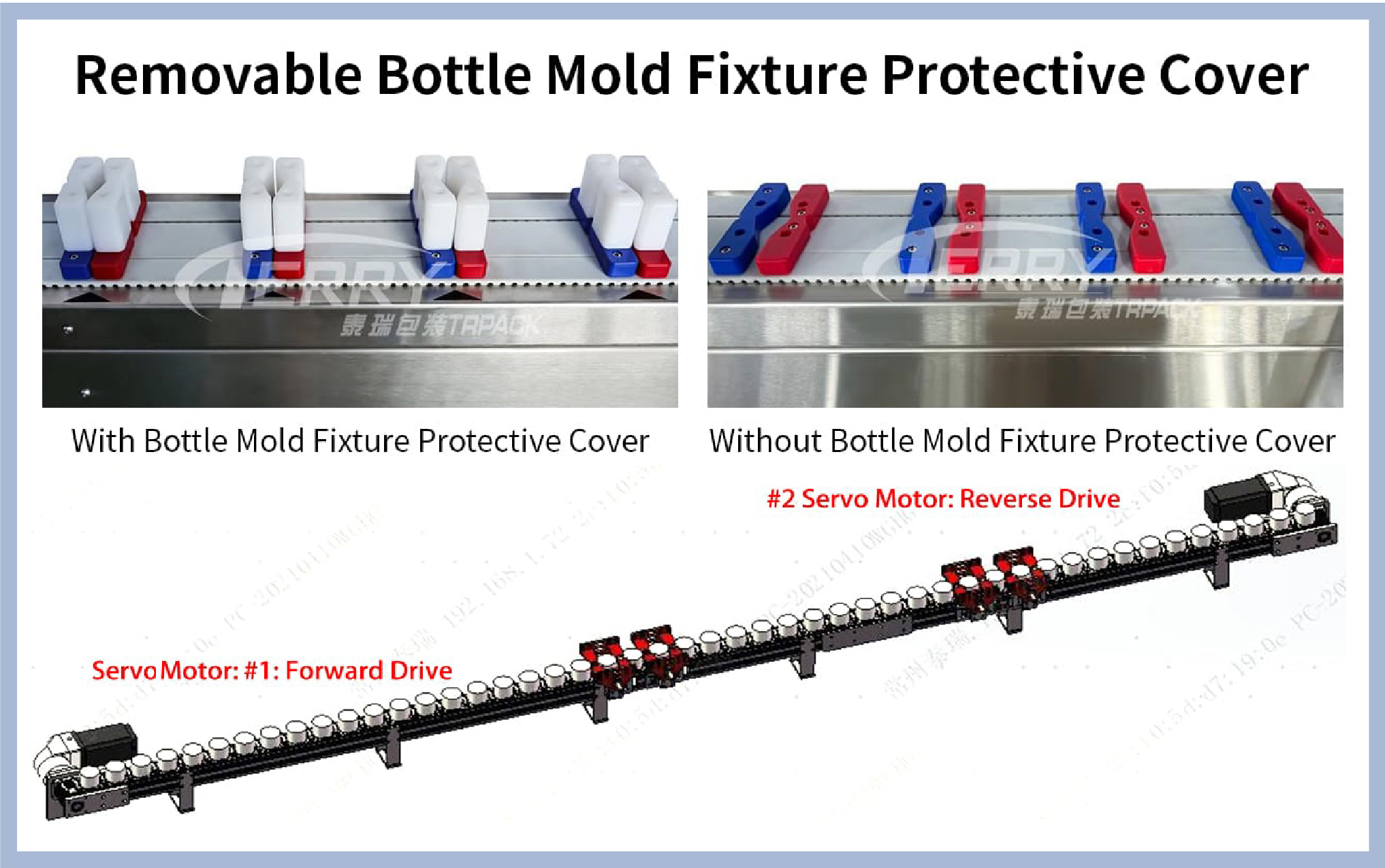

(1) Removable Bottle Mold Fixture Protective Cover:
* With Protective Cover: For tall bottles (emulsions/lotions) to prevent inverted bottles during conveying, improving qualification rates.
* Without Protective Cover: Ideal for short bottles (creams).
(2) Servo Motor Controlled Bottle Direction: The servo motor drives forward or reverse bottle positioning.

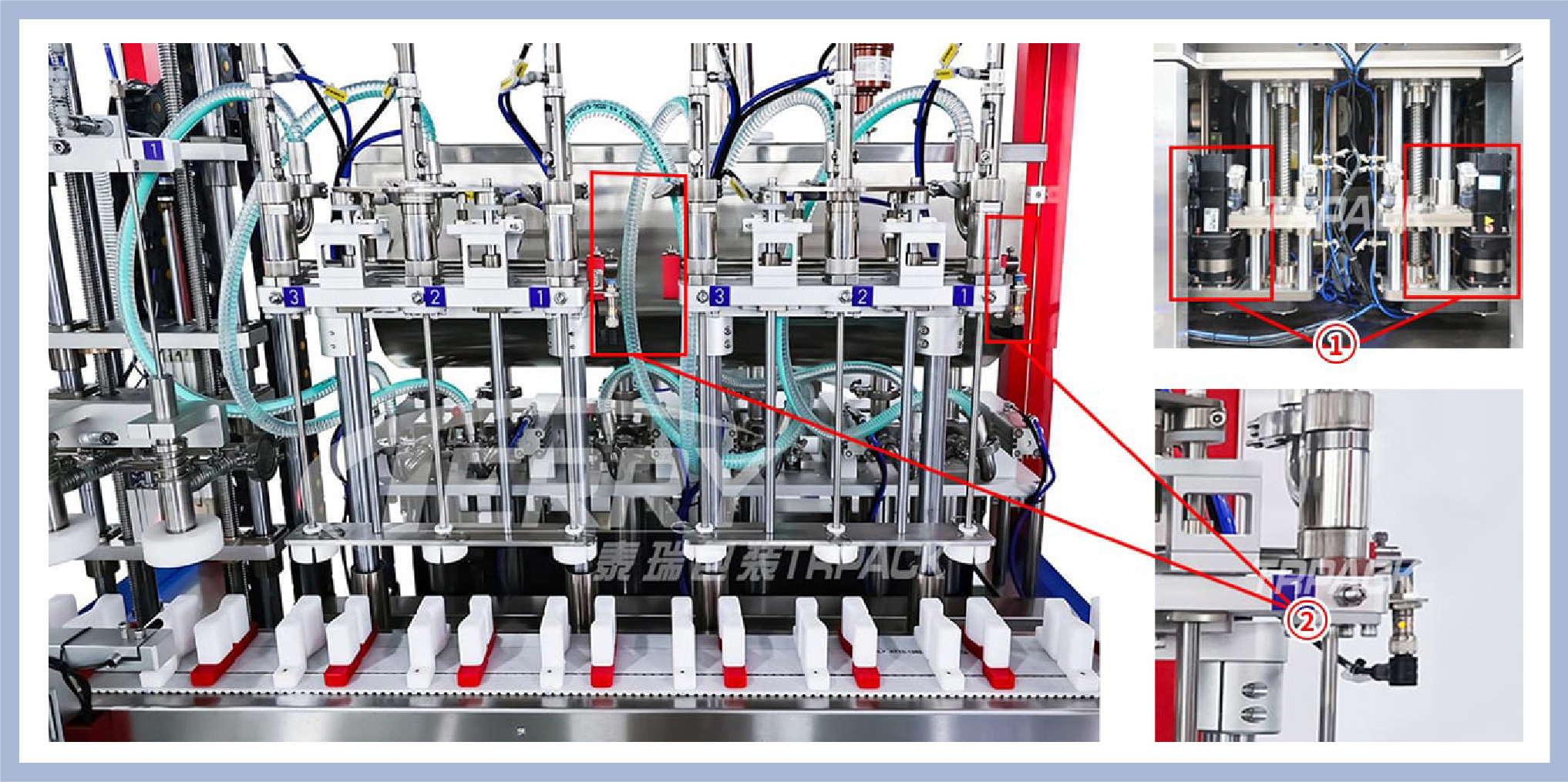

(1) Equipped with two complete sets of servo motor-driven filling systems.
(2) Bottle Mouth Anti-collision Function: Eliminates leakage, neck damage, or nozzle breakage caused by alignment collisions during production.

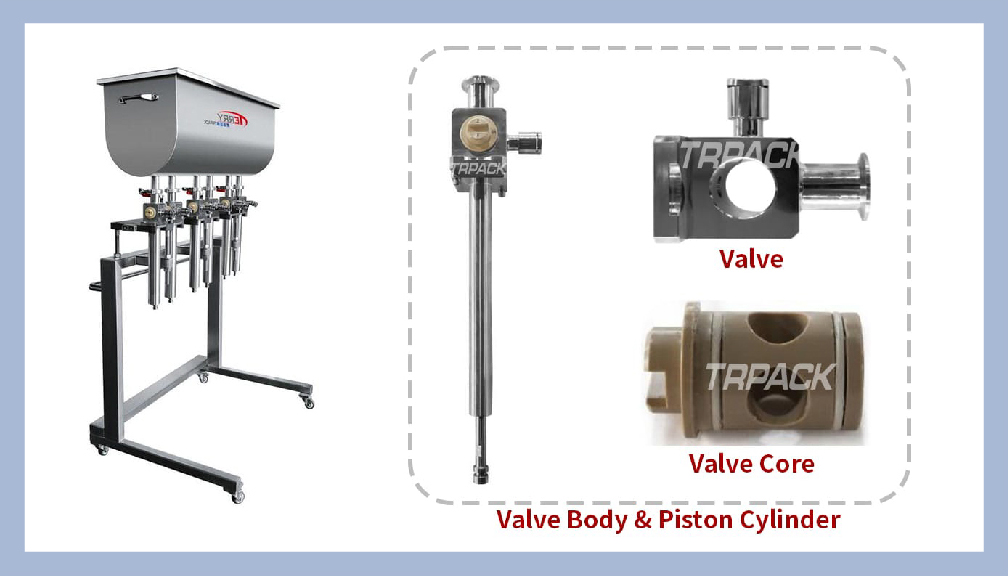

Sanitary valve and piston cylinder assemblies ensure uncompromised hygiene and tool-free quick maintenance.

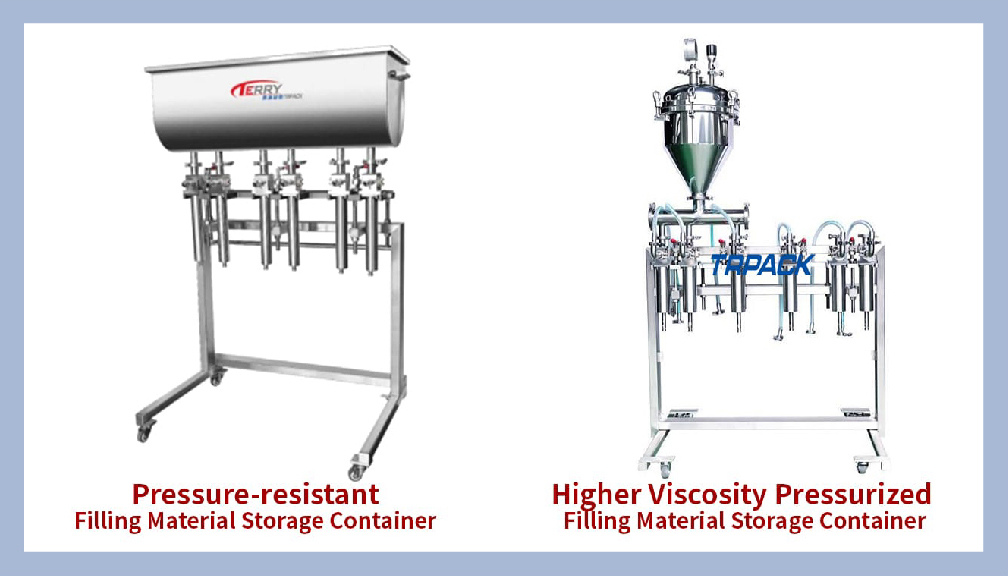

(1) Pressure-resistant Filling Material Storage Container: For aqueous emulsion products.
(2) Pressure-resistant Container: For high-viscosity creams and pastes (utilizes 3 filling heads to achieve target capacity).

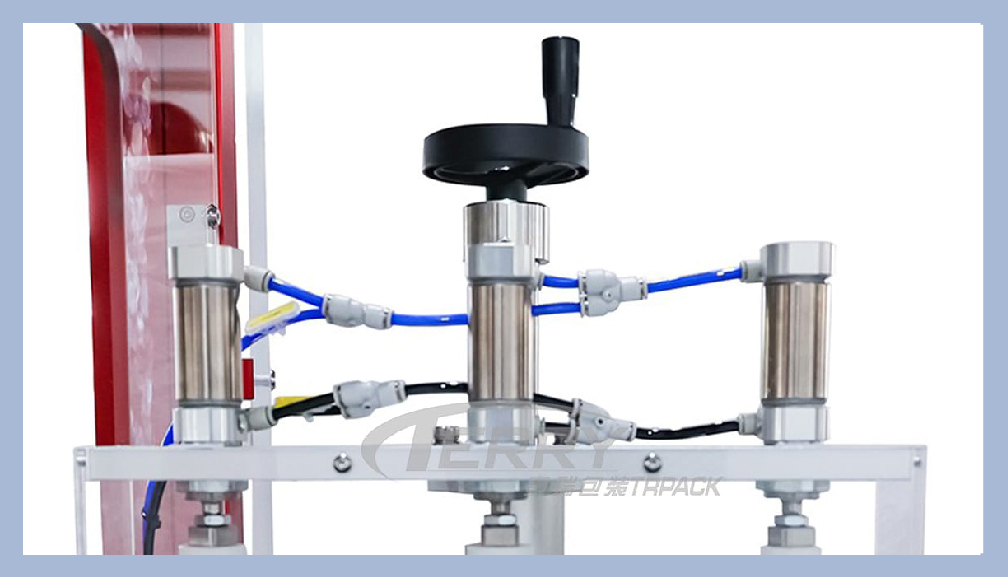

The soft, deformable inner pad fits tightly. The edges and bottle groove require a 0.5mm clearance on each side; the drawstring is centered with an 8mm spacing.

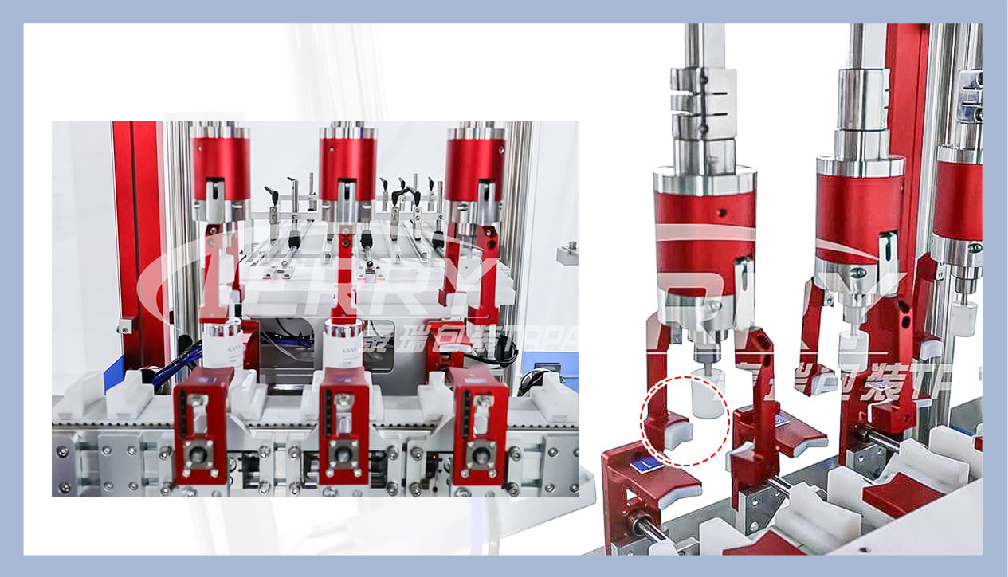

Custom silicone-lined cap grippers completely protect aesthetic cap surfaces from scratching and friction marks.

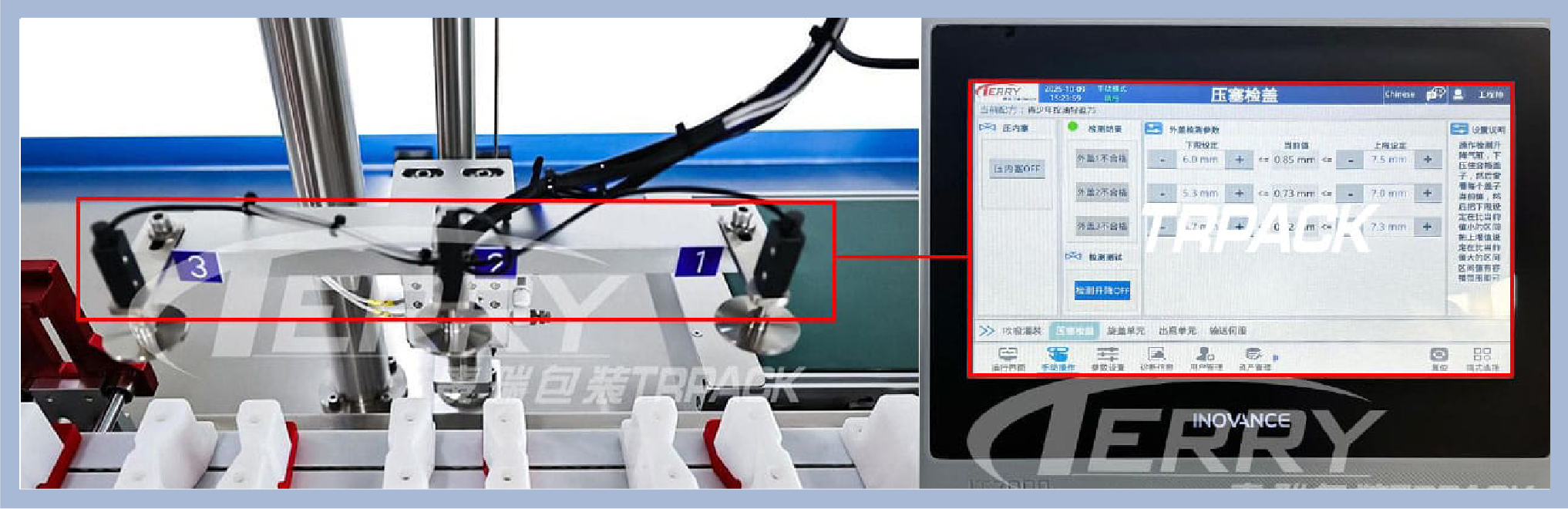

Integrated photoelectric sensors immediately trigger alarms when detecting defective parts, and route signals to execute precise rejections without line stoppage.

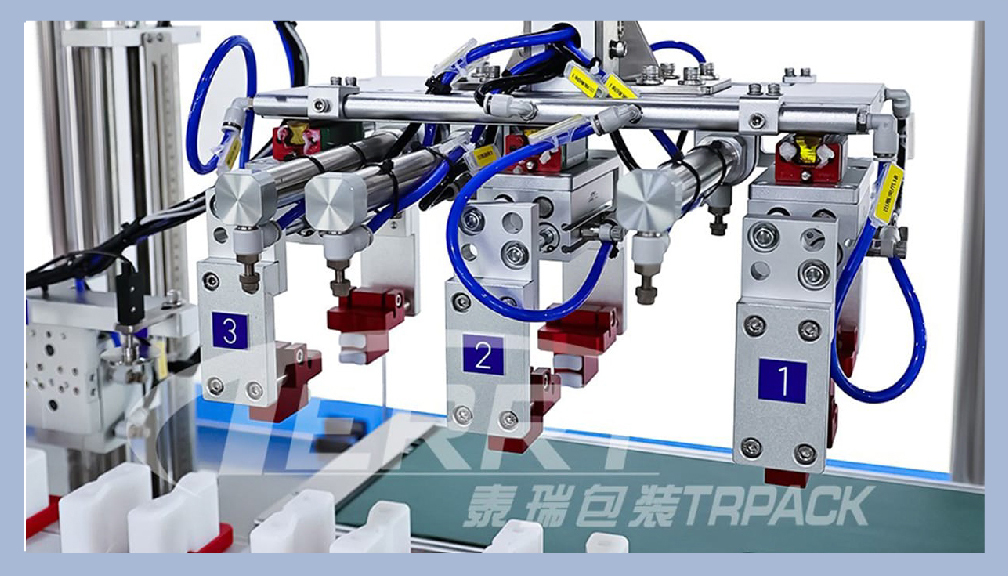

Three sets of robotic arms handle stable bottle unloading and mold release with fully adjustable pickup heights.

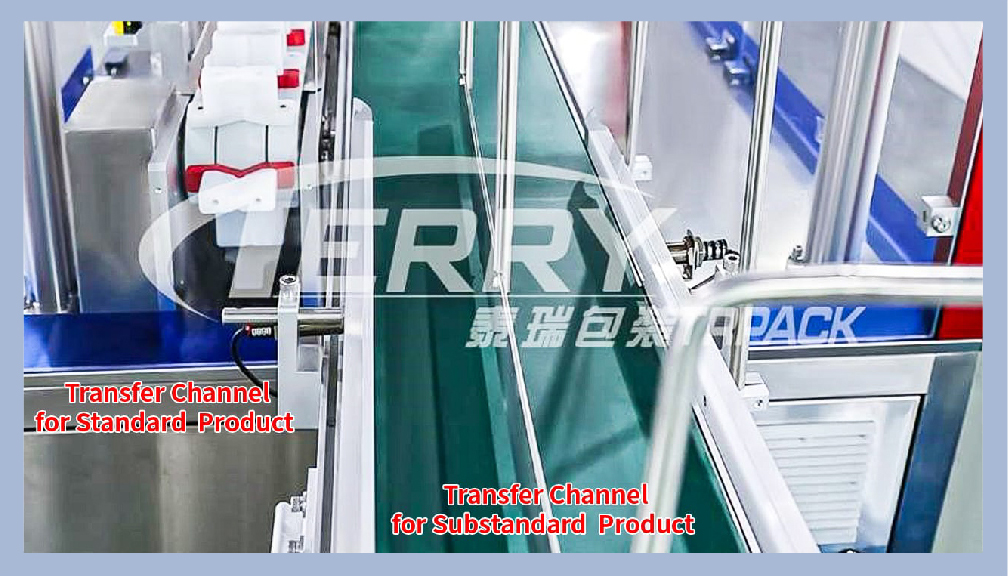

Defective bottles (missing caps, skewed placement, or excessive height) are redirected to a dedicated path for isolated tracking.

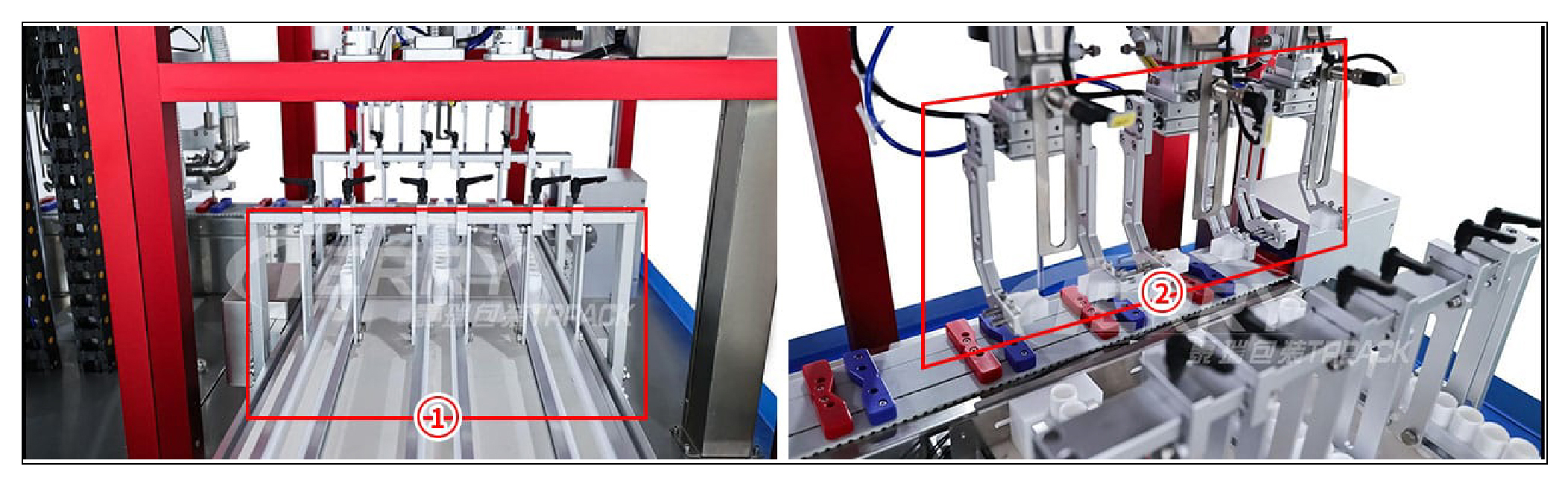

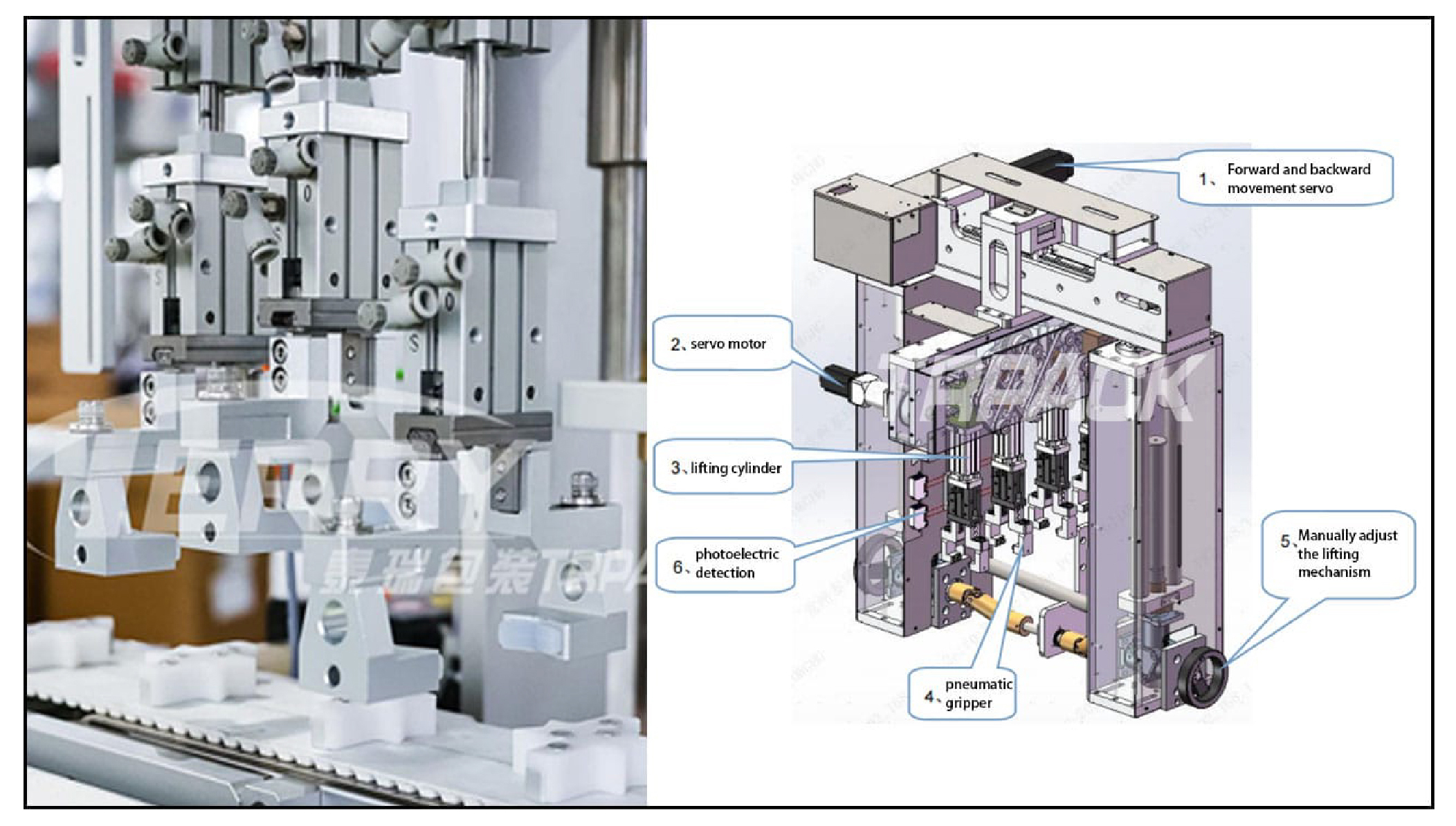

Three robotic claws pick up and position bottles into the moulds. Two servo motors drive the extension/retraction and conveyor travel, combined with pneumatic vertical lift.
Bottles are manually placed onto the infeed track, where a set of three robotic grippers pick and place them into production molds automatically.
Application Scenarios: Essence, Perfume, Moisturizing Water, Toner, Hair Treatment, Sunscreen.
Application Scenarios: Fully Automatic Filling Lines for Lotion and Cream, Automatic Bottle Loading and Unloading Machine.
Application Scenarios: Essence, Perfume, Moisturizing Water, Toner, Hair Treatment, Sunscreen.
Application Scenarios: Toilet Cleaner, Grease Remover, Disinfectant and Sterilizing Solution Conditioner.
Application Scenarios: Oral Spray, Oral Freshener.
Application Scenarios: Facial Cleanser, Hand Cream, Tube Ointment, Eye Cream.
